Online/Offline Quick Measurement Systems
BDT 0/-
Product Details

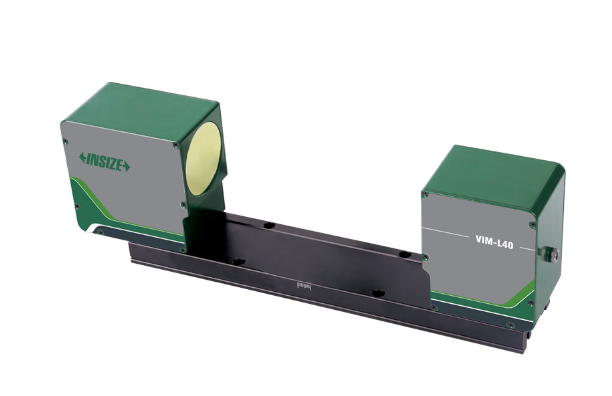

Brand: INSIZE
Model: VIM-L40
Country Of Origin: China
Features:
Low-distortion system assures the accuracy throughout the field of view
The dual telecentric optical system ensures sharp edges without losing accuracy even for misaligned targets
Easy to use measurement tools for simplifit setup (Note: "simplifit" is transcribed as seen in the image)
| Measurement Area (High Precision): | Ø26mm |
| Measurement Area (Full): | Ø40mm |
| Measurement Accuracy (High Precision): | ±2µm |
| Distance (Transmitter to Receiver): | 180mm |
| Light Source: | InGaN green LED |
| Protection: | IP64 |
| Weight: | 2.2kg |
The INSIZE VIM-L40 Online/Offline Quick Measurement System is a high-precision, dual-telecentric optical measuring instrument designed for rapid dimensional inspection of small to medium-sized parts. Operating on a non-contact, through-beam principle, it is ideal for both inline automated manufacturing checks and offline laboratory quality control.
The system features a dual telecentric optical system with a large depth of field (up to 20mm full range), ensuring sharp edge detection and accuracy even if the target is slightly misaligned or at varying heights. It utilizes an InGaN green LED light source and an aluminum shell with an IP64 dust/waterproof rating, making it durable enough for shop-floor environments.
The included software makes setup simple and allows for the automatic, simultaneous measurement of widths, pitches, arcs, and angles in under a second. It provides immediate OK/NG pass/fail results for each measured dimension. The standard package includes the main unit, an industrial computer, and the necessary software dongle, offering a complete turnkey solution for high-speed optical metrology.
The INSIZE VIM-L40 Telecentric Measurement System is a high-precision, non-contact optical measuring instrument designed for fast 2D dimensional inspection in manufacturing and quality control. Its dual telecentric optical system provides low-distortion measurements, sharp edges, and a depth of field up to 20 mm. The system simultaneously measures dimensions such as widths, pitches, arcs, and angles, delivering instant OK/NG inspection results. With an IP64-rated enclosure, online and offline operation, and optional rotary table for 360° inspection, it is ideal for automated production lines and high-speed quality inspection. The standard package includes the main unit, industrial computer, and measurement software dongle.
