Shank Runout Testers
BDT 0/-
Product Details
Brand: INSIZE
Model: 4771-30
Country Of Origin: China
Features:
Measure the radial runout of shanks, collets and cutting tools
Optional accessory: dial test indicator, magnetic stand
| Taper: | BT30 |
| Accuracy: | 1µm |
| Dimensions (L×W): | 500×280mm |
| Included: | Standard shank |
| Optional Accessories: | Dial test indicator, magnetic stand |

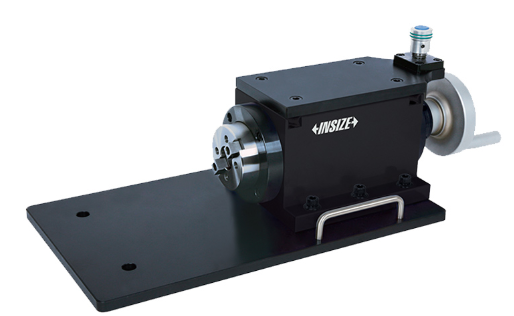

The INSIZE 4771-30 Shank Runout Tester is a precision benchtop instrument designed to measure the radial runout of tool shanks, collets, and various cutting tools. Featuring a robust BT30 spindle with an impressive accuracy of 1µm, it allows machinists and tool room professionals to verify tool concentricity before it enters the CNC machine, preventing vibration and ensuring high-quality surface finishes.
The tester is built on a stable, heavy-duty baseplate (500x280mm) with a convenient carrying handle, ensuring it stays firmly in place during measurement. A standard shank is included for calibration and baseline testing. The system is designed to be used with a dial test indicator and a magnetic stand (sold separately), which can be positioned to check the runout of the shank itself, a mounted collet, or the cutting edges of end mills and facing cutters.
INSIZE 4771-30 Shank Runout Tester – Precision BT30 Tool Inspection
Ensure optimal machining accuracy and extend tool life by verifying your tooling with the INSIZE 4771-30 Shank Runout Tester. Designed for machine shops, tool cribs, and quality control labs, this robust benchtop fixture allows you to accurately measure the radial runout of BT30 tool holders, collets, and cutting tools before they are loaded into the spindle.
Key Features & Benefits:
-
Ultra-High Precision: Achieves a measurement accuracy of 1µm, allowing you to detect and correct minute eccentricities that cause poor surface finish, chatter, and premature tool wear.
-
Comprehensive Runout Checks: The open design allows you to easily position an optional dial indicator to check the runout of the tool shank, an installed collet, a solid end mill, or a multi-insert facing cutter.
-
Sturdy & Stable Construction: Built on a rigid, 500x280mm baseplate, the tester provides a solid, vibration-dampening platform. A built-in handle makes it easy to move the unit to a convenient inspection area.
-
BT30 Compatibility: Equipped with a precision BT30 spindle interface to securely hold standard tool holders.
-
Includes Calibration Shank: Comes standard with a high-precision calibration shank for quick setup and baseline verification.
-
Expandable System: Pair with an optional precision dial test indicator and magnetic base (available separately) to complete your measurement station.
