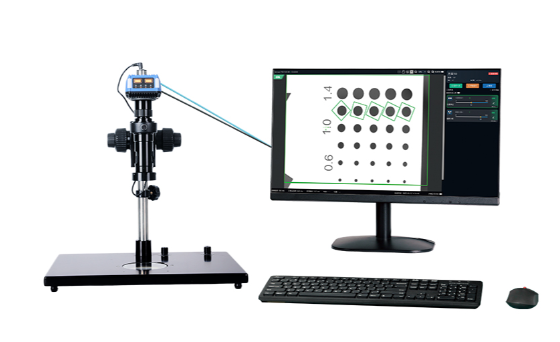

Smart Microscope
BDT 0/-
Product Details
Brand: INSIZE
Model: ISM-DL402
Country Of Origin: China
Features:
Industrial vision inspection
Automatically identify different workpieces
Automatically locate workpieces regardless of position and direction
Supporting industrial communication protocols (TCP/IP, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, Seria, MELSEC/SLMP)
Including multiple detection tools
| Sensor: | 1/1.8" CMOS, 5M Pixel |
| Resolution: | 2448Ã2048, 30fps |
| Magnification: | 13.5X~90X (13.5X~54X for measuring) |
| View Field: | 17Ã14~2.5Ã2mm |
| Dimensions: | 570Ã300Ã430mm |
| Net Weight: | 6.03kg |
The INSIZE ISM-DL402 Smart Microscope is an advanced, industrial-grade automated optical inspection (AOI) system designed to streamline quality control. Unlike traditional manual microscopes, it operates as a fully functional machine vision system. It automatically identifies, locates, and measures workpieces regardless of their position or orientation on the stage, ensuring rapid and highly repeatable inspections without the need for precise operator alignment.
Equipped with a 5M pixel sensor and a 0.75X~5X step-zoom lens, the ISM-DL402 delivers sharp, high-resolution images. Its powerful built-in software offers a wide range of inspection tools, including dimension measurement, circle diameter inspection, character recognition (OCR), object counting, presence/absence checks, and QR code validation. The system is designed for Industry 4.0 integration, supporting numerous industrial communication protocols (TCP/IP, ModBus, Profinet, etc.) for seamless data transfer to PLCs or MES systems. The package includes an integrated PC and monitor, making it a complete, turnkey smart inspection solution.
INSIZE ISM-DL402 Smart Microscope – Automated Industrial Vision Inspection
Transform your quality control process with the INSIZE ISM-DL402 Smart Microscope, a powerful, fully automated machine vision system designed for industrial inspection. By combining high-resolution optics with intelligent software and industrial connectivity, it eliminates the subjectivity of manual inspection and delivers fast, accurate, and repeatable results.
Key Features & Benefits:
-
Automated Recognition & Positioning: Stop wasting time perfectly aligning parts. The ISM-DL402 automatically recognizes and locates workpieces regardless of their position or direction on the stage, making it ideal for high-throughput production lines.
-
Comprehensive Detection Tools: The intuitive software is equipped to handle virtually any visual QC task. It performs precise dimension and circle measurements, character recognition (OCR), object counting, presence/absence checks (e.g., verifying a chip resistor is in place), and even validates QR codes for damage.
-
High-Clarity Optics: Features a 0.75X~5X step-zoom lens and a 1/1.8" 5M pixel CMOS sensor, ensuring that even fine details are captured in sharp 2448x2048 resolution.
-
Industry 4.0 Ready: Seamlessly integrate the microscope into your smart factory. It supports a wide array of industrial communication protocols, including TCP/IP, ModBus TCP, Profinet, Ethernet/IP, and MELSEC/SLMP.
-
Instant OK/NG Feedback: The included software compares measurements against user-defined tolerances and immediately outputs a clear OK or NG judgment on the screen.
-
Complete Turnkey System: Comes ready to use with a 21.5" LCD, a dedicated computer, a 63x63mm calibration plate, and all necessary cables.
