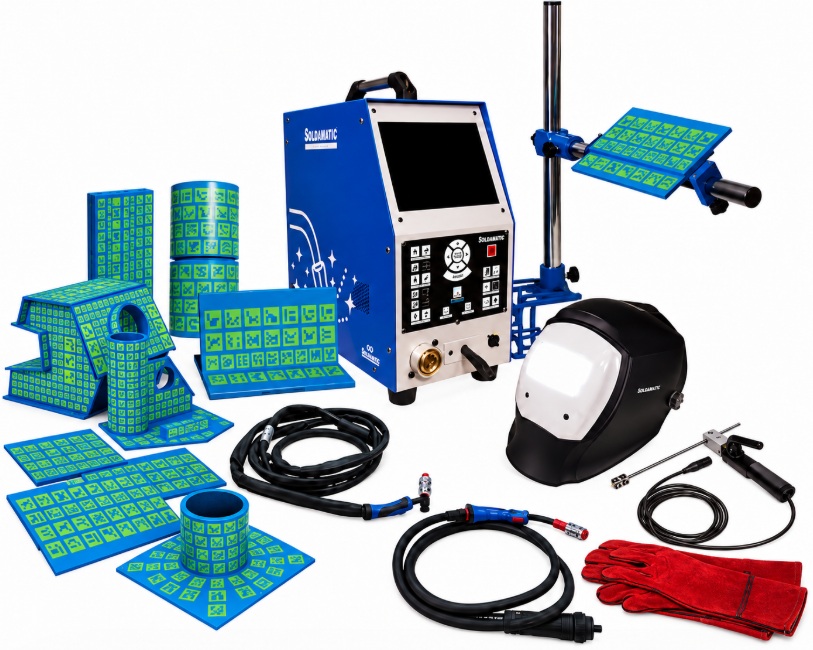

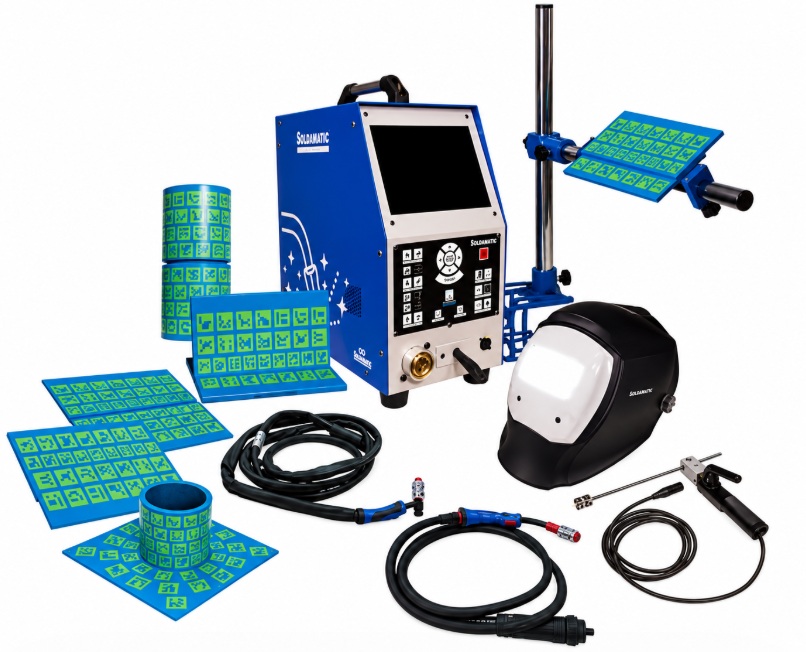

SOLDAMETIC Augmented Reality Welding Simulator
BDT 0/-
Product Details
Professional Service
Quick Response
24/7 Customer Support
| VISION TECHNOLOGY | AUGMENTED REALITY |
| WELDING PROCESSES SUPPORTED |
MANUAL: GMAW (MIG/MAG) & FCAW G/S, SMAW (MMAElectrode), GTAW (TIG) ROBOTICS: GMAW (MIG/MAG) & FCAW G/S |
| WELDING POSITIONS |
PA, PB, PC, PD, PF/PG, PE, PH/PJ, HL045/JL045 - 1F, 2F, 3F, 4F, 5F, 6F, 1G, 2G, 3G, 4G, 5G, 6G HL045 (6G) available in AWM-002, AWM-008, AWM-011, AWM 012 and AWM-016. 6GR available in AWM-011 (Pipeline 6GR) |
| DEFAULT WELDING JOINTS INCLUDED |
Training Welding Joints: Overlapped plate, V-Butt plate, T-Angled plate to plate, V-Butt pipe, T-Angled pipe to plate |
| ADDITIONAL WELDING JOINTS AVAILABLE |
20 Additional Advanced Welding Multijoints available for manual and robot welding based on Foundational, Automotive, Railway, Shipbuilding and Oil&Gas industries Manual: AWM001, AWM002, AWM003, AWM004, AWM005, AWM006, AWM007, AWM008, AWM011, AWM012, AWM013, AWM014, AWM020 available for AWS training content Robotics: AWM001, AWM004, AWM009, AWM010, AWM015, AWM016, AWM017, AWM018, AWM019 |
| WELDING JOINTS FOR SPECIFIC INDUSTRIAL NEEDS | With Industrial Welding Services |
| ON DEMAND TAILOR MADE COUPONS | Including the physical workpiece. Industrial Welding Services |
| PIECE CAN BE MANIPULATED SEPARATELY |
It can be manipulated at any time during the exercise to perform a visual inspection of the welding bead. The workpiece is not attached in any way to the workstand |
| REAL WELDING TORCHES | MANUAL: YES, by Abicor Binzel |
| REAL ADVANCED WELDING TORCHES | Handle ergonomics by Abicor Binzel |
| HAPTICS | Advanced GMAW/FCAW torch includes vibration feature |
| WELDING SOUNDS | Recorded in a real welding lab |
| REAL WELDING MASK | YES |
| VOLTAGE SELECTION |
MANUAL: it can be modified during the exercise ROBOTICS: in job selection |
| INTENSITY (AMPERAGE) SELECTION | It can be modified during the exercise |
| SHIELDING GAS SELECTION | The flow can be modified during the exercise |
| WIRE SPEED SELECTION |
MANUAL: in GMAW (MIG/MAG) and FCAW, it can be modified during the exercise ROBOTICS: in job selection |
| PLUG WELDING | In AWM-005 (Automotive Thin Plates) and Industrial Services |
| COUPON MATERIAL SELECTION | Carbon Steel, Stainless Steel, Aluminum |
| GAS COMPOSITION |
MATERIAL - GMAW - GTAW - FCAW Carbon Steel - Argon - Co², CO² - Helium* - Argon - Co², CO² Aluminum - Argon - Argon - Stainless Steel - Argon - O² - Argon - |
| COUPON THICKNESS SELECTION |
YES: 3mm, 6mm, 10mm 1mm, 2mm, 7mm, 8mm, 15mm, 16mm, 20mm, 25mm available with Advanced license |
| POSSIBILITY TO USE OTHER THICKNESSES | On demand with Industrial Welding Services |
| ELECTRODE STICK / FILLER ROD DIAMETER SELECTION |
MATERIAL - GMAW - SMAW - GTAW Carbon/Stainless Steel - 0.8mm, 1mm, 1.2 mm - 2.5mm, 3.25mm, 4mm - 2mm, .4mm, 3.2 mm Aluminum - 1mm, 1.2mm |
| ELECTRODE STICK / FILLER ROD SELECTION |
MATERIAL - GMAW - SMAW - GTAW - FCAW Carbon Steel - ER70S-6 -E7018,E6010, E6013 - ER70S-6 -E71T-1, E71T-7 Stainless Steel - E316LSi - E316L - ER316L Aluminum - ER5356 - - ER5356 |
| POSSIBILITY TO TRY DIFFERENT SETTINGS DURING THE EXERCISE AND THEIR EFFECTS IN THE WELDING BEAD | YES |
| MULTIPASS EXERCISE WITH DIFFERENT WELDING PROCESSES | YES |
| WELDING TECHNIQUE | Push / Drag |
| WELDING PATTERN/WEAVE | Straight, Triangle, Convex, Circle, Zigzag |
| WELDING DIRECTION | ROBOTICS: Right to left/ Left to right |
| OPEN ROOT WELDING |
In AWM-006, AWM-008, AWM-011, AWM-012, AWM-013 and AWM-015 |
| TRANSFER MODES |
Short circuit, globular, spray, pulsed-arc (available for AWM welding joints) |
| UNDO WELDING |
It is possible to undo a pass or weldment repeating only a certain part of the exercise |
| ON-SCREEN HELP GUIDES | They can be added/removed |
| POSSIBILITY TO CONNECT THE UNIT TO A ROBOTIC ARM | Robotics license needed |
| ANALYSIS MODULE | YES |
| ADVANCED ANALYSIS MODULE |
Included in Advanced licenses. Mechanical Resistance and Cross Section |
| DEFECTS ANALYZED |
Porosity, spatter, slag inclusion, burn through (available for AWM welding joints) |
| REPORT FEATURES |
CTWD, Travel Speed, Work Angle, Travel Angle, Trajectory, Voltage, Wirefeed Speed, Technical Parameters, Equipment Settings, and Bend Test |
| AUGMENTED TRAINING CONTENT |
Developed by Seabery: Augmented Training Soldamatic Welding Course; Augmented Training Methodology; Introduction to Robot Welding; MAG position PF / PD / PH |
| INTERNATIONAL PUBLISHERS CONTENT | AWS, CESOL, DVS, Ludo Breemans |
| LMS APPLICATION | Soldamatic e-Learning for Teachers and Students |
| LMS APPLICATION: TEACHER ACCESS | Easy web access and also desktop application |
| LMS APPLICATION: STUDENTS ACCESS | Web access. Visualize contents, progress, take tests, live chat |
| LMS APPLICATION: LIVE CHAT | Available for teachers and students |
| LMS APPLICATION: SHAREVIEW |
Teachers can see what the students see in real time in their laptop, either within the same classroom or online |
| REMOTE TRAINING / DISTANCE LEARNING |
Synchronous and asynchronous options Teachers can monitor students from different training centers online, seeing in real time their progress and the weldersâ point of view while welding |
| STUDENT PERSONALIZED PROFILE | Practices report and progression |
| REPORTS |
Exercises, courses, students and diploma reports. Also CSV format available for end-user custom reports |
| CUSTOMIZED PRACTICES | Customized in Soldamatic E-Learning |
| REAL ENVIRONMENT DURING SIMULATION | YES |
| SUBSCRIPTION OPTIONS | Anual or Lifetime |
| UPDATES |
Online and offline Software updates and bugfixing (Same version) included in the license with no additional cost New system versions included in the anual license with no additional cost |
| REMOTE MAINTENACE | YES |
| SPECIFIC CUSTOMER ADAPTATIONS ON DEMAND | YES |
| REGULATIONS | CE and FCC |
| CERTIFICATIONS |
ISO 9001 Quality Management System ISO 14001 Environmental Management System |
| DIMENSIONS (WITHOUT ACCESSORIES) | 442,5x239,5x457,5mm (17.42x94.29x18.72 in.) |
| WEIGHT (WITHOUT HELMET) | 9.46 Kilograms (20.85 lbs.) |
| WEIGHT (WITH HELMET) | 10.5 Kilograms (23.15 lbs.) |
| ACCESORIES |
MANUAL STANDARD: filler rod, welding gloves, Wi-Fi antennas ROBOTICS: Vision Module, Robotics educational torch and Robotics advanced torch OPTIONAL: GTAW (TIG) Pedal, Workstand, Augmented Lab server including router, and flight case. |
| POWER SUPPLY | 100V-240V |
| PROCESSOR | IntelÂŽ Coreâĸ i5 10th gen |
| CHIPSET | IntelÂŽ Q470E |
| RAM | 16 GB (2 x 8GB Dual-Channel) DDR4 2400Mhz |
| GRAPHIC CARD | NVIDIA Quadro T1000 |
| HARD DISK | M.2 SSD 128GB |
| AUDIO | Realtek High Definition Audio |
| OPERATING SYSTEM | Seabery Operating System optimized for Soldamatic 2023 |
| AUTOMATIC SHUTDOWN | It can be configured |
| DISPLAY SIZE | 9.7ââ |
| DISPLAY RESOLUTION | HD LCD 1024 x 768 XGA |
| BACK PANEL PORTS |
Screen: HDMI/Display Ports USB: 4 x USB 3.2 Gen 1 Connection: 2x LAN 2x Antennas IntelÂŽ WiFi6 Dual Band Audio: microphone & speakers ports Others: Robotics port |
| FRONT PANEL PORTS | 1 X USB type A, 1 X USB type B |
| AR VISION MODULE RESOLUTION |
MIPI LCD 4,7â HDMI Display input up to 1280x720 Ultra-low video distortion 24-bit True Colour |
| CAMERAS RESOLUTION (X2) | 640x480 / 800x600 Autofocus |
| UNIT CAN BE USED WITH GLASSES | YES |
| OPERATING TEMPERATURE | 0 - 45° |
| HUMIDITY | 10 - 80% |
