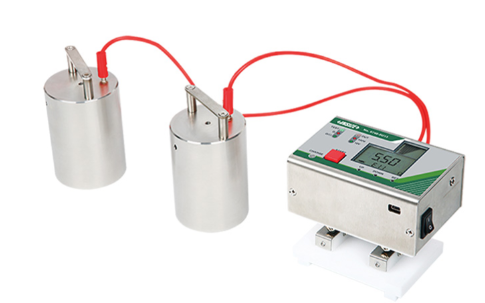

Surface Resistance Tester
BDT 413,711/-
Product Details
Brand: INSIZE
Model: 0740-SU13
Country Of Origin: China
Features:
Designed to EOS/ESD, CECC, ASTM and UL standards.
Suitable for testing table mats, floors, paint, work clothes, bags, etc.
Automatic selection of resistance range and test voltage.
| Type: | Surface Resistance Tester |
| Range: | 1×10³~1×10¹³ Ω |
| Accuracy: | <10¹¹: 10% / ≥10¹¹: 20% |
| Test Voltage: | 10V/100V, ±5% |
| Test Time: | 15s, 30s, 60s |
| Working Environment: | 0°C~49°C, humidity: ≤80% |
| Power Supply: | Rechargeable lithium battery: 3.7V, 1800mAh |
| Dimension: | 115×79×69mm |
| Net Weight: | 630g |
The INSIZE 0740-SU13 Surface Resistance Tester is a professional-grade instrument designed for accurate measurement of surface resistance on a wide range of materials. It is compliant with EOS/ESD, CECC, ASTM, and UL standards, making it ideal for electrostatic discharge (ESD) audits, quality control, and material verification. The tester is suitable for testing table mats, floors, paint, work clothes, bags, and other surfaces. It features automatic selection of resistance range and test voltage, covering a wide measurement range from 1×10³ to 1×10¹³ Ω. Accuracy is 10% for readings below 10¹¹ Ω and 20% for readings at or above 10¹¹ Ω. The device offers selectable test voltages of 10V and 100V (±5%) and test times of 15s, 30s, or 60s. It operates in environments from 0°C to 49°C with humidity ≤80%, and is powered by a rechargeable 3.7V, 1800mAh lithium battery. The unit measures 115 x 79 x 69 mm and weighs 630g. The standard delivery includes the main unit, 2 electrodes, 2 conductive rubber pads, 3 test leads, 1 test rack, and 1 power adapter.
INSIZE 0740-SU13 Surface Resistance Tester – ESD-Compliant Surface Resistance Meter
Ensure electrostatic discharge (ESD) compliance and material quality with the INSIZE 0740-SU13, a professional-grade surface resistance tester designed to meet EOS/ESD, CECC, ASTM, and UL standards. Ideal for quality control engineers, ESD auditors, and manufacturers, this instrument provides accurate surface resistance measurements for a wide range of materials.
Key Features & Benefits:
-
Standards Compliant: Designed to meet EOS/ESD, CECC, ASTM, and UL standards for reliable, auditable results.
-
Versatile Applications: Suitable for testing table mats, floors, paint, work clothes, bags, and other surfaces.
-
Wide Measurement Range: Covers 1×10³ to 1×10¹³ Ω for comprehensive material evaluation.
-
Automatic Operation: Features automatic selection of resistance range and test voltage for ease of use.
-
High Accuracy: Provides 10% accuracy for readings below 10¹¹ Ω and 20% accuracy for readings at or above 10¹¹ Ω.
-
Selectable Test Parameters: Offers test voltages of 10V/100V (±5%) and test times of 15s, 30s, or 60s.
-
Rechargeable Power: Powered by a 3.7V, 1800mAh rechargeable lithium battery for convenient, cordless operation.
-
Complete Kit: Standard delivery includes main unit, 2 electrodes, 2 conductive rubber pads, 3 test leads, 1 test rack, and 1 power adapter.
-
Compact & Portable: Measures 115 x 79 x 69 mm and weighs 630g for benchtop or field use.
-
Wide Operating Environment: Functions from 0°C to 49°C with humidity ≤80%.
-
Optional Accessories: Compatible with digital thermohygrometers (9362-TH27, 0317-TH37) for environmental monitoring.
