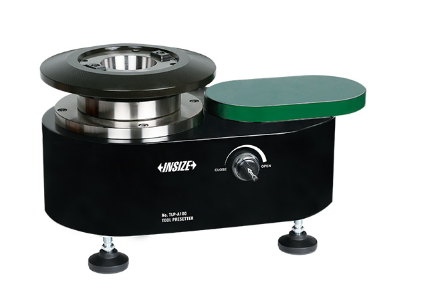

Tool Presetter
BDT 0/-
Product Details
Brand: INSIZE
Model: TLP-A100
Country Of Origin: China
Features:
Vacuum clamping function
Measurement of cutting tools runout with precision dial indicator
Measurement of cutting tools length with height gauge
Conveniently adjust settings for close-toothed cutting tools, boring cutting tools, etc.
| Max. Tool Diameter: | Ã160mm |
| Max. Tool Height: | 300mm |
| Spindle: BT50 (Accuracy: | 0.005mm) |
| Working Air Pressure: | 0.4~0.6MPa |
| Dimensions: | 425Ã220Ã225mm |
| Weight: | 37.5kg |
The INSIZE TLP-A100 Tool Presetter is a highly specialized, compact benchtop base designed for precise tool inspection and setup. Its standout feature is the vacuum clamping function, operated via a simple front switch, which securely holds tool holders in place during measurement.
Unlike full digital presetters, the TLP-A100 is designed to be used in conjunction with external measuring tools. It provides a stable, high-precision BT50 spindle (with an accuracy of 0.005mm) that allows operators to conveniently measure cutting tool runout using a precision dial indicator, or measure tool length using a height gauge. It is exceptionally suited for adjusting complex tools, such as close-toothed cutters and boring tools. Weighing only 37.5kg with a footprint of 425×220×225mm, it is a space-saving, durable, and essential accessory for any machine shop.
INSIZE TLP-A100 Tool Presetter – Vacuum Clamping Base for CNC Tool Inspection
Achieve precise and stable tool inspections with the INSIZE TLP-A100 Tool Presetter. Designed as a compact, benchtop vacuum clamping base, this unit provides the perfect platform for checking cutting tool runout and length when paired with your existing precision dial indicators and height gauges.
Key Features & Benefits:
-
Secure Vacuum Clamping: Features a dedicated vacuum clamping switch and a pressure regulating valve to firmly hold tool holders in place, eliminating movement during critical measurements.
-
High-Precision Spindle: Equipped with a robust BT50 spindle (optional BT40/BT30 available) that boasts an impressive 0.005mm accuracy, ensuring your tool setup is flawless.
-
Optimized for Complex Tooling: The design makes it incredibly convenient to adjust and inspect close-toothed cutting tools, boring bars, and other complex geometries.
-
Dual Measurement Capabilities: Perfectly suited for measuring cutting tool runout with a dial indicator or measuring tool length with a height gauge.
-
Compact & Space-Saving: With a small footprint (425×220×225mm) and a weight of just 37.5kg, it fits easily on any workbench without taking up valuable space.
-
Ready to Use: Standard delivery includes the main unit, BT50 spindle, pressure regulating valve, cleaning rod, and air ducts.
