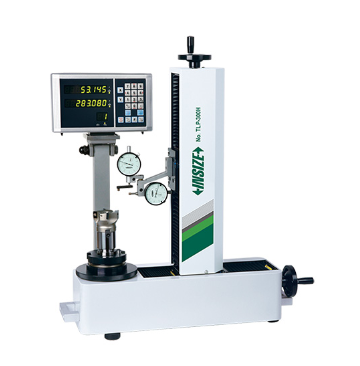

Tool Presetter (Basic Type)
BDT 0/-
Product Details
Brand: INSIZE
Model: TLP-300H
Country Of Origin: China
Features:
Absolute linear scales, zero setting is not needed after power on and off
| Maximum Tool Diameter: | Ã300mm |
| Height Measuring Range: | 60~300mm |
| Measuring Accuracy: | 0.02mm |
| Spindle Holder: | BT50 |
| Dimensions: | 600x365x690mm |
| Net Weight: | 68kg |
The INSIZE TLP-300H Tool Presetter (Basic Type) is a compact, highly reliable manual offline tool setting instrument designed for precise CNC tool measurement. Weighing only 68kg, it is an ideal benchtop solution for smaller workshops or tool rooms. A standout feature is its absolute linear scales, which eliminate the need to re-zero the machine after powering it on and off, saving time and preventing setup errors.
The TLP-300H is equipped with a large digital readout for clear visibility and uses smooth handwheels for X and Z axis movement. For exact positioning, it features dual dial indicators (0.01mm graduation) that allow for fine adjustments. It comes standard with a robust BT50 spindle holder and allows operators to manually rotate the tool for thorough edge inspection. With a measuring accuracy of 0.02mm, a repeatability of 0.005mm, and a capacity for tools up to Ø300mm in diameter and 300mm in height, this tool presetter delivers exceptional value and precision for everyday machining tasks.
INSIZE TLP-300H Manual Tool Presetter – Compact Precision CNC Tool Setting
Optimize your CNC machine uptime with the INSIZE TLP-300H Tool Presetter. Designed as a highly compact and reliable basic-type benchtop unit, this manual tool setting system is perfect for tool rooms and machine shops looking to ensure precise tool geometry before loading into the spindle.
Key Features & Benefits:
-
Zeroing Eliminated: Equipped with absolute linear scales, the TLP-300H retains its position even after powering down, meaning no time is wasted re-zeroing the machine upon startup.
-
Tactile Precision: Operators have complete control using the X and Z axis handwheels. Dual dial indicators (graduated to 0.01mm) are included for making fine, exact adjustments.
-
Clear Digital Display: A large digital readout provides fast and clear measurements with a linear scale resolution of 0.005mm.
-
Heavy-Duty Spindle: Comes standard with a BT50 spindle holder. The built-in rotation feature allows you to manually turn the tool for full edge inspection.
-
Compact Footprint: At just 600x365x690mm and weighing 68kg, it fits easily into smaller workspaces without sacrificing a Ø300mm tool diameter capacity.
-
Ready to Use: The standard delivery includes a BT50 spindle holder, standard calibration rod, two dial indicators, a wrench, and an anti-dust cover.
