Toolmaker Microscopes
BDT 0/-
Product Details
Brand: INSIZE
Model: ISD-VMM205
Country Of Origin: China
Features:
High-Precision Optics: 10X dividing eyepiece and 3X objective for clear, accurate measurements.
Advanced Data Processing: Dedicated DPU with comprehensive functions for measuring threads, slots, and complex geometries.
Versatile Illumination: Adjustable LED surface and contour lighting, plus a laser positioning switch.
Manual Precision Control: Smooth manual X-Y stage drive with reset switches for easy operation.
Expandable Magnification: Compatible with optional 1X, 5X, and 10X objectives.
Turnkey Setup: Includes calibration chart, demo sample, foot switch, and standard 3X objective.
| Type: | Binocular Toolmaker Microscope |
| X/Y Travel: | 150Ã100mm |
| Accuracy: | â¤(3.5+L/100)Âĩm |
| Resolution: | 0.5Âĩm |
| Magnification: | 30X (with standard 3X objective) |
| Dimensions: | 540Ã667Ã850mm |
| Net Weight: | 100kg |

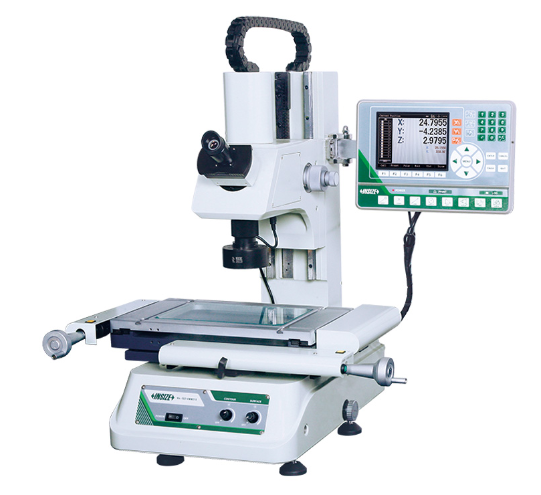

The INSIZE ISD-VMM205 Toolmaker Microscope is a highly precise, manual optical measuring instrument designed for the inspection and measurement of small, complex parts such as cutting tools, threads, and templates. Featuring a robust design with a 150×100mm X-Y travel range and a 0.5µm resolution, it delivers dependable accuracy of ≤(3.5+L/100)µm.
The microscope is equipped with a 10X dividing eyepiece and a standard 3X objective, providing an optical magnification of 30X (expandable with optional 1X, 5X, and 10X objectives). It offers adjustable LED illumination for both surface and contour observation, along with an aperture diaphragm and a laser positioning switch for precise alignment. The dedicated digital data processing unit significantly enhances its capabilities, allowing operators to easily measure point coordinates, lines, circles, distances, angles, rectangles, threads, and slots. With an RS232 output and a foot switch for hands-free operation, it is an essential metrology tool for any machine shop or quality control lab.
INSIZE ISD-VMM205 Toolmaker Microscope – Precision Optical Metrology
Achieve accurate, repeatable measurements on complex components with the INSIZE ISD-VMM205 Toolmaker Microscope. Designed for precision machining, tool rooms, and quality control departments, this manual optical measuring system combines high-quality optics with a powerful digital data processing unit to deliver comprehensive dimensional inspection capabilities.
Key Features & Benefits:
-
High-Precision Optical System: Equipped with a 10X dividing eyepiece featuring horizontal, vertical, and diagonal scales for precise length and diameter measurements. The standard 3X objective provides 30X optical magnification, with 1X, 5X, and 10X options available for specialized needs.
-
Intuitive Measurement Software: The dedicated digital data processing unit (DPU) with RS232 output offers extensive measurement functions, including point coordinates, lines, circles, distances, angles, rectangles, thread parameters, and slots.
-
Dual Illumination: Features independently adjustable LED lighting for both surface (episcopic) and contour (diascopic) observation, along with an aperture diaphragm adjustment knob for optimal contrast.
-
Precision Mechanics: Features a heavy-duty 354x228mm metal stage with 150x100mm X-Y travel, a 0.5µm resolution, and 2µm repeatability. X and Y axis reset switches streamline the workflow.
-
Ergonomic Design: Includes a foot switch for hands-free control and a laser positioning switch for quick targeting.
-
Robust Capacity: Supports workpieces up to 25kg, ensuring stability for a wide range of parts.
