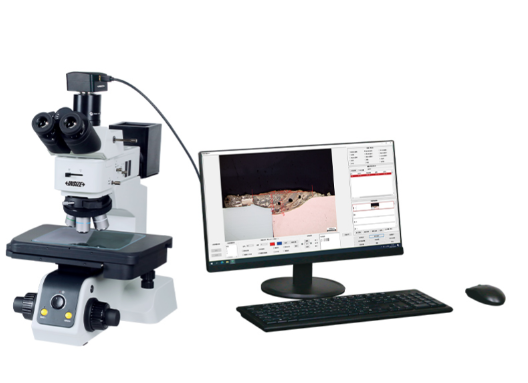

Weld Seam Measurement Software And Camera
BDT 0/-
Product Details
Brand: INSIZE
Model: ISM-MAS300
Country Of Origin: China
Features:
Microscopic photographing and measurement of the weld penetration depth generated by various welding processes
Measurement and analysis of penetration depth, penetration width, penetration height, overlap amount, cut, etc.
Two report templates are provided and customized report templates can also be provided
Wide range of applications, compatible with multiple microscopes and cameras
| Sensor: | 1/1.8" CMOS, 6.3M Pixel |
| Resolution: | 3072Ã2048 (30fps) |
| Exposure Time: | 0.1ms~15s |
| Power Supply: | USB port |
| Weight: | 400g |
The INSIZE ISM-MAS300 Weld Seam Measurement Software and Camera is a specialized, high-precision analytical system engineered to evaluate the quality and integrity of welds. Combining a high-resolution 6.3M USB camera with dedicated measurement software, it provides a comprehensive solution for microscopic photographing and precise analysis of weld penetration depth, width, height, overlap amount, and cut generated by various welding processes.
The included software is incredibly powerful, offering a vast array of measurement tools (points, lines, rectangles, circles, polygons, angles, arcs) to accurately map weld profiles. A standout feature is the system's ability to automatically judge the qualification of the weld after measurement is complete, significantly reducing human error and inspection time. The software allows for extensive image processing to ensure maximum clarity, including adjustments for brightness, contrast, grayscale, binarization, edge enhancement, and noise removal. Furthermore, it generates professional, standardized reports with your measurement images and data embedded, with two pre-set weld bead section check list templates provided and fully customizable options available to meet specific client requirements.
INSIZE ISM-MAS300 Weld Seam Measurement System – Precision Weld Inspection
Ensure the structural integrity and quality of your welds with the INSIZE ISM-MAS300 Weld Seam Measurement Software and Camera. Designed for welding engineers, metallurgists, and quality control inspectors, this advanced system provides microscopic photographing and precise measurement of weld penetration, ensuring compliance with strict industry standards.
Key Features & Benefits:
-
Comprehensive Weld Analysis: Accurately measure and analyze critical weld parameters, including penetration depth, width, height, overlap amount, and cuts generated by various welding processes.
-
Automated Judgment & Reporting: Streamline your inspection workflow. Once the measurement is completed, the software automatically judges the qualification of the weld. It then generates a detailed report containing the measurement images, utilizing one of two pre-provided Weld Bead Section Check List templates (customizable upon request).
-
Powerful Measurement Tools: The software provides a robust suite of tools, including two-point methods, drag methods, three-point methods, angle, arc, and polygon measurements, giving you the flexibility to assess any weld geometry.
-
Advanced Image Processing: Optimize your images for perfect measurement accuracy. Adjust brightness, contrast, color, grayscale levels, and binarization, or use advanced functions like removing noise points, connecting broken lines, sharpening, softening, and edge enhancement.
-
High-Resolution Hardware: Equipped with a 6.3M pixel 1/1.8" CMOS USB camera (3072×2048 resolution at 30fps), it captures highly detailed images with exposure times ranging from 0.1ms to 15s.
-
Broad Compatibility: While the camera is included, the system seamlessly integrates with a variety of optional INSIZE microscopes (such as the 5110-M900 and 5108 series) to fit your specific laboratory setup.
