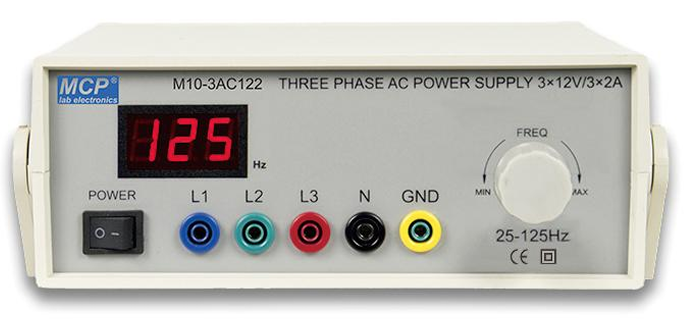

M10-3AC122 THREE PHASE AC POWER SUPPLY
BDT 25,442/-
Product Details
Brand: MCP
Model: M10-3AC122
Country Of Origin: China
Features
-
AC three‑phase power supply
-
Adjustable frequency
-
Low‑distortion sine wave output
-
Safe voltage output: 12V
-
Over‑current protection
-
Double insulation for safety
-
LED frequency display
-
Designed for electric and electronic study
Specifications
Input
-
220V single‑phase AC ±10%
Terminals
-
Three‑phase AC + N + GND
Output
-
Waveform: sine
-
Distortion factor: ≤3%
-
Phase difference: 120° ±5°
-
Frequency: 25Hz–125Hz
-
Voltage RMS: 3 × 12V ±0.25V
-
Max. current RMS: 3 × 2A
Display
-
Frequency: 3‑digit LED
-
Resolution: 1Hz
-
Accuracy: ±1%
Dimensions
-
210(W) × 80(H) × 230(D) mm
Weight
-
2.5kg
| Input: | 220V single‑phase AC ±10% |
| Terminals: | Three‑phase AC + N + GND |
| Output: |
Waveform: sine Distortion factor: ≤3% Phase difference: 120° ±5° Frequency: 25Hz–125Hz Voltage RMS: 3 × 12V ±0.25V Max. current RMS: 3 × 2A |
| Display |
Frequency: 3‑digit LED Resolution: 1Hz Accuracy: ±1% |
| Dimensions |
Frequency: 3‑digit LED Resolution: 1Hz Accuracy: ±1% |
| Dimensions | 210(W) × 80(H) × 230(D) mm |
| Weight | 2.5kg |
Features
-
AC three‑phase power supply
-
Adjustable frequency
-
Low‑distortion sine wave output
-
Safe voltage output: 12V
-
Over‑current protection
-
Double insulation for safety
-
LED frequency display
-
Designed for electric and electronic study
Specifications
Input
-
220V single‑phase AC ±10%
Terminals
-
Three‑phase AC + N + GND
Output
-
Waveform: sine
-
Distortion factor: ≤3%
-
Phase difference: 120° ±5°
-
Frequency: 25Hz–125Hz
-
Voltage RMS: 3 × 12V ±0.25V
-
Max. current RMS: 3 × 2A
Display
-
Frequency: 3‑digit LED
-
Resolution: 1Hz
-
Accuracy: ±1%
Dimensions
-
210(W) × 80(H) × 230(D) mm
Weight
-
2.5kg

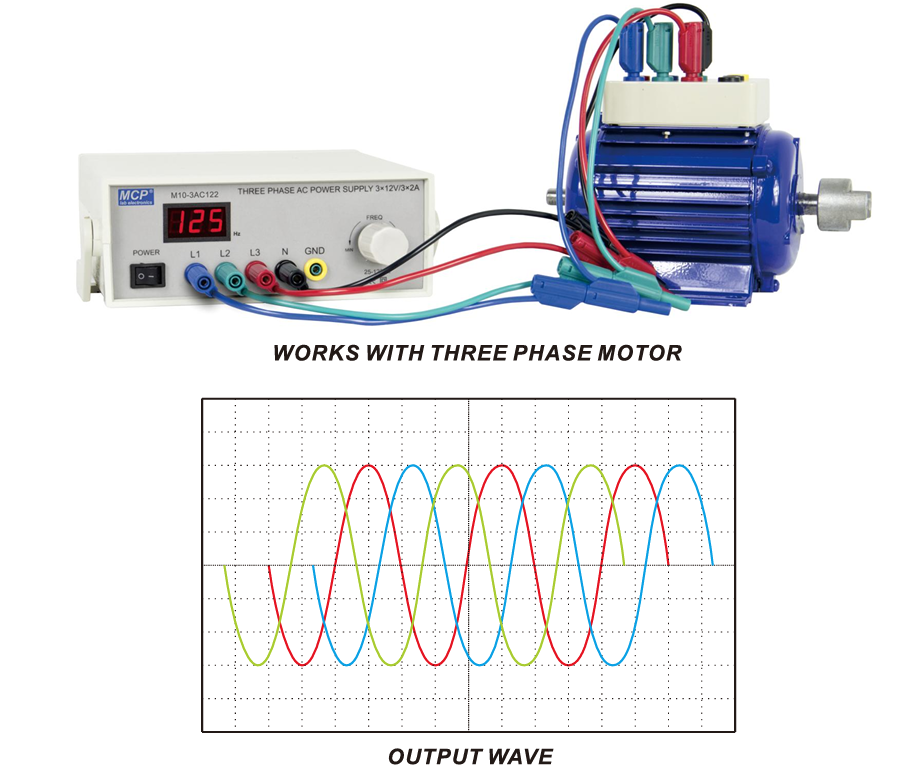

The M10‑3AC122 AC Three‑Phase Power Supply is a compact and reliable solution for educational and laboratory use. It provides a safe 12V three‑phase sine wave output with adjustable frequency from 25Hz to 125Hz, making it ideal for studying electrical systems and electronic applications. With low distortion, precise phase difference, and LED frequency display, the M10‑3AC122 ensures accurate and stable performance. Built‑in over‑current protection and double insulation enhance safety, making it perfect for universities, training centers, and research labs.
