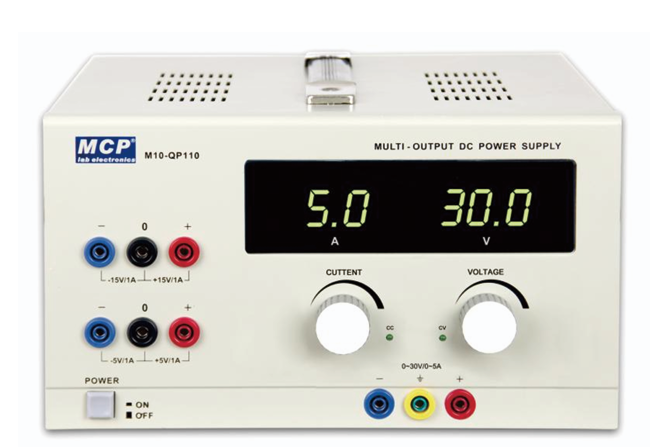

M10-QP110 MULTI OUTPUT DC POWER SUPPLY
BDT 31,142/-
Product Details
Brand: MCP
Model: M10-QP110
Country Of origin: China
Features
-
Triple independent DC outputs
-
One adjustable output and two fixed outputs
-
Current and voltage LED display
-
Two fixed symmetric outputs
-
Over‑current protection on each output
Specifications
Output 1
-
Output voltage: 0–30V
-
Output current: Max. 5A
-
Line regulation: 0.01% + 3mV
-
Load regulation: 0.01% + 4mV
-
Ripple & noise: 1mV
-
Display accuracy: Voltmeter ±(0.2%Rdg + 2 digits)
Output 2
-
Output voltage: ±15V
-
Output current: Max. 1A
-
Line regulation: 1%
-
Load regulation: 1%
-
Ripple & noise: 5mV
Output 3
-
Output voltage: ±5V
-
Output current: Max. 1A
-
Line regulation: 1%
-
Load regulation: 1.5%
-
Ripple & noise: 2.5mV
-
Input voltage: 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable)
-
Dimensions: 260(W) × 160(H) × 340(D) mm
-
Weight: 8kg
| Output 1 |
Output voltage: 0–30V Output current: Max. 5A Line regulation: 0.01% + 3mV Load regulation: 0.01% + 4mV Ripple & noise: 1mV Display accuracy: Voltmeter ±(0.2%Rdg + 2 digits) |
| Output 2 |
Output voltage: ±15V Output current: Max. 1A Line regulation: 1% Load regulation: 1% Ripple & noise: 5mV |
| Output 3 |
Output voltage: ±5V Output current: Max. 1A Line regulation: 1% Load regulation: 1.5% Ripple & noise: 2.5mV |
| Input voltage: | 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable) |
| Dimensions: | 260(W) × 160(H) × 340(D) mm |
Features
-
Triple independent DC outputs
-
One adjustable output and two fixed outputs
-
Current and voltage LED display
-
Two fixed symmetric outputs
-
Over‑current protection on each output
Specifications
Output 1
-
Output voltage: 0–30V
-
Output current: Max. 5A
-
Line regulation: 0.01% + 3mV
-
Load regulation: 0.01% + 4mV
-
Ripple & noise: 1mV
-
Display accuracy: Voltmeter ±(0.2%Rdg + 2 digits)
Output 2
-
Output voltage: ±15V
-
Output current: Max. 1A
-
Line regulation: 1%
-
Load regulation: 1%
-
Ripple & noise: 5mV
Output 3
-
Output voltage: ±5V
-
Output current: Max. 1A
-
Line regulation: 1%
-
Load regulation: 1.5%
-
Ripple & noise: 2.5mV
-
Input voltage: 110–127VAC ±10% 60Hz, 220–240VAC ±10% 50Hz (switchable)
-
Dimensions: 260(W) × 160(H) × 340(D) mm
-
Weight: 8kg
The M10‑QP110 Multi‑Output DC Power Supply is a compact and versatile instrument designed for laboratory and industrial applications. It provides three independent DC outputs, including one adjustable channel (0–30V/5A) and two fixed symmetric outputs (±15V and ±5V). With LED current and voltage displays, precise regulation, and built‑in over‑current protection, the M10‑QP110 ensures safe and stable operation. Its reliable performance and multiple outputs make it ideal for universities, research labs, and electronics workshops requiring flexible DC power solutions.
