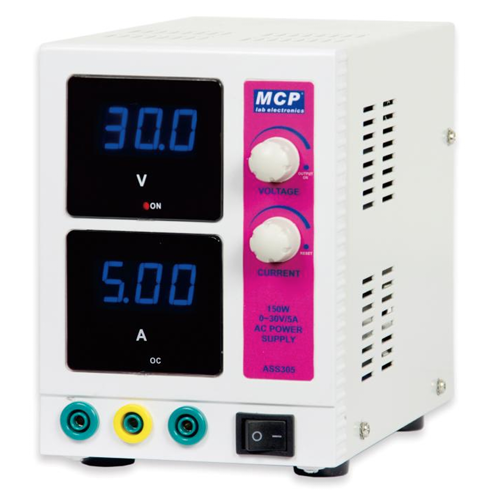

M10-ASS305 SWITCHING AC POWER SUPPLY
BDT 18,720/-
Product Details
Brand: MCP
Model: M10-ASS305
Country Of origin: China
Features
-
AC power supply sine wave output
-
Amplitude continuously adjustable
-
Output frequency switchable and line tracing
-
Max. output voltage: 30V
-
Max. output current: 5A
-
Max. output power: 150W
-
Light and compact construction
Specifications
-
Output voltage: 1.5–30VAC RMS
-
Output current: Max. 5A
-
Voltage resolution: 0.1V
-
Current resolution: 10mA
-
Output frequency: 50Hz, 60Hz (switchable or line tracing)
-
Output accuracy: Frequency ±1%
-
Display accuracy:
-
Voltmeter ±(1%Rdg + 2 digits)
-
Ammeter ±(1%Rdg + 2 digits)
-
-
Input voltage: 100–127VAC or 220–240VAC, 50Hz/60Hz
-
Dimensions: 105(W) × 160(H) × 215(D) mm
-
Weight: 2.2kg
| Output voltage: | 1.5–30VAC RMS |
| Output current: | Max. 5A |
| Voltage resolution: | 0.1V |
| Current resolution: | 10mA |
| Output frequency: | 50Hz, 60Hz (switchable or line tracing) |
| Output accuracy: | Frequency ±1% |
| Display accuracy: |
Voltmeter ±(1%Rdg + 2 digits) Ammeter ±(1%Rdg + 2 digits) |
| Input voltage: | 100–127VAC or 220–240VAC, 50Hz/60Hz |
| Dimensions: | 105(W) × 160(H) × 215(D) mm |
| Weight: | 2.2kg |
Features
-
AC power supply sine wave output
-
Amplitude continuously adjustable
-
Output frequency switchable and line tracing
-
Max. output voltage: 30V
-
Max. output current: 5A
-
Max. output power: 150W
-
Light and compact construction
Specifications
-
Output voltage: 1.5–30VAC RMS
-
Output current: Max. 5A
-
Voltage resolution: 0.1V
-
Current resolution: 10mA
-
Output frequency: 50Hz, 60Hz (switchable or line tracing)
-
Output accuracy: Frequency ±1%
-
Display accuracy:
-
Voltmeter ±(1%Rdg + 2 digits)
-
Ammeter ±(1%Rdg + 2 digits)
-
-
Input voltage: 100–127VAC or 220–240VAC, 50Hz/60Hz
-
Dimensions: 105(W) × 160(H) × 215(D) mm
-
Weight: 2.2kg
The M10‑ASS305 Switching AC Power Supply is a compact and efficient 150W solution for laboratory and industrial applications. It delivers a clean sine wave AC output with continuously adjustable amplitude and switchable frequency (50Hz/60Hz or line tracing). With precise voltage and current resolution, accurate digital metering, and lightweight construction, the M10‑ASS305 is ideal for electronics testing, research labs, and educational environments requiring stable AC power with flexible control.
