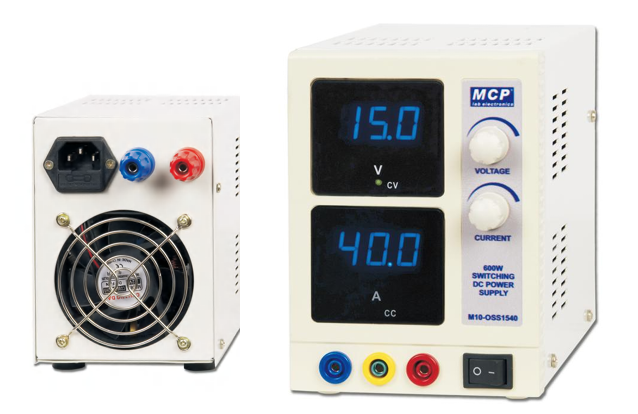

M10-OSS1540 SWITCHING DC POWER SUPPLY
BDT 27,380/-
Product Details
Brand: MCP
Model: M10-OSS1540
Country Of origin: China
Features
-
600W power output
-
Constant voltage and constant current
-
Temperature‑controlled fan and overheat protection
Specifications
-
Output voltage: 0–15V
-
Output current: 0–40A
-
Line regulation:
-
CV ≤ 2×10−3+3 mV
-
CC ≤ 2×10−3+3 mA
-
-
Load regulation:
-
CV ≤ 1×10−3+5 mV
-
CC ≤ 2×10−3+5 mA
-
-
Ripple & noise:
-
CV ≤ 30mVrms
-
CC ≤ 30mArms
-
-
Display accuracy:
-
Voltmeter ±(1.0%Rdg + 2 digits)
-
Ammeter ±(1.0%Rdg + 2 digits)
-
-
Input voltage: 110–127VAC ±10% 60Hz or 220–240VAC ±10% 50Hz
-
Dimensions: 105(W) × 160(H) × 235(D) mm
-
Weight: 2.5kg
| Output voltage: | 0–15V |
| Output current: | 0–40A |
| Line regulation: |
CV2×10−3+3mV CC2×10−3+3mA |
| Load regulation: |
CV1×10−3+5mV CC2×10−3+5mA |
| Ripple & noise: |
CV ≤ 30mVrms CC ≤ 30mArms |
| Display accuracy: |
Voltmeter ±(1.0%Rdg + 2 digits) Ammeter ±(1.0%Rdg + 2 digits) |
| Input voltage: | 110–127VAC ±10% 60Hz or 220–240VAC ±10% 50Hz |
| Dimensions: | 105(W) × 160(H) × 235(D) mm |
| Weight: | 2.5kg |
Features
-
600W power output
-
Constant voltage and constant current
-
Temperature‑controlled fan and overheat protection
Specifications
-
Output voltage: 0–15V
-
Output current: 0–40A
-
Line regulation:
-
CV ≤ 2×10−3+3 mV
-
CC ≤ 2×10−3+3 mA
-
-
Load regulation:
-
CV ≤ 1×10−3+5 mV
-
CC ≤ 2×10−3+5 mA
-
-
Ripple & noise:
-
CV ≤ 30mVrms
-
CC ≤ 30mArms
-
-
Display accuracy:
-
Voltmeter ±(1.0%Rdg + 2 digits)
-
Ammeter ±(1.0%Rdg + 2 digits)
-
-
Input voltage: 110–127VAC ±10% 60Hz or 220–240VAC ±10% 50Hz
-
Dimensions: 105(W) × 160(H) × 235(D) mm
-
Weight: 2.5kg
The M10‑OSS1540 DC Power Supply is a compact, high‑current solution delivering up to 600W of regulated DC power. With a wide output range of 0–15V and up to 40A current capacity, it is ideal for applications requiring high current at low voltage. Featuring constant voltage and constant current modes, low ripple and noise, and built‑in protections including a temperature‑controlled fan and overheat safeguard, the M10‑OSS1540 ensures safe and reliable operation. Its lightweight design makes it perfect for laboratories, universities, and industrial environments where high‑power DC supply is essential.
