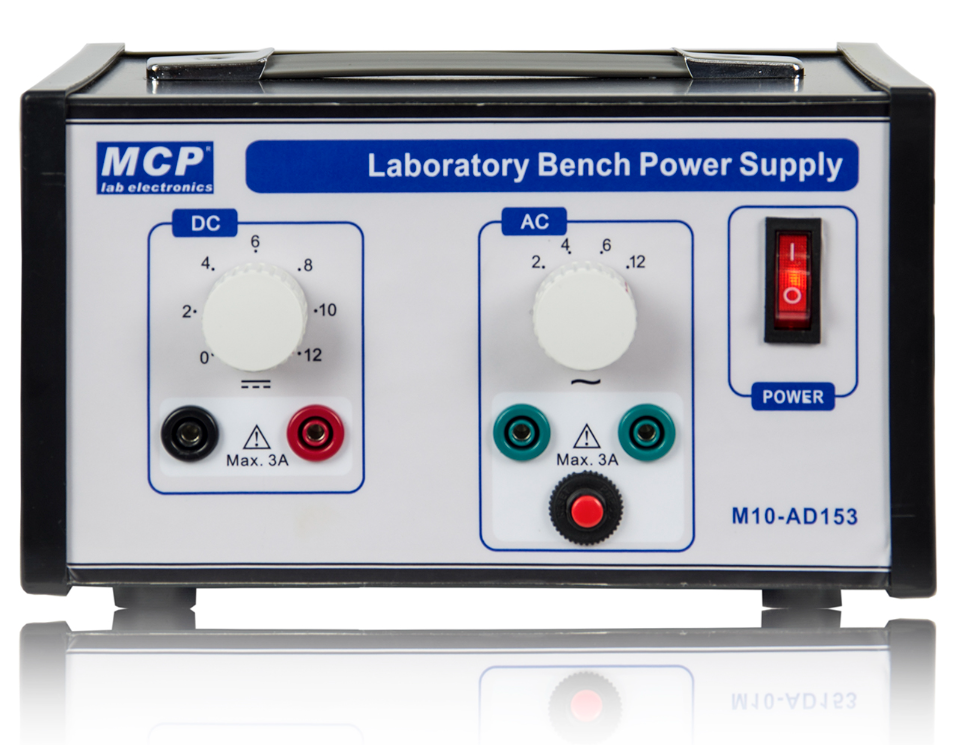

M10‑AD153 AC & DC Power Supply
BDT 11,220/-
Product Details
Brand: MCP
Model: M10‑AD153
Country Of Origin: China
Features
-
Both AC and regulated DC output
-
DC continuously adjustable
-
DC electronic current protection
-
AC selectable output voltage
-
AC circuit breaker protection
| DC Output: | Voltage: 0 ~ 12V Current: 3A Load regulation: 750mV Line regulation: 20mV Ripple & Noise: 15mV |
| AC Output: | Voltage: 2V, 4V, 6V, 12V Current: 3A |
| General: | Input voltage: 220 ~ 240VAC ±10%, 50Hz or 110 ~ 127VAC ±10%, 60Hz Dimensions: 220 (W) × 133 (H) × 193 (D) mm Weight: 3kg |
What is this
This is a combined AC and regulated DC laboratory power supply. It provides continuously adjustable DC voltage from 0 to 12 V and selectable AC outputs of 2 V, 4 V, 6 V and 12 V.
How is it used
For DC operation, set the required voltage between 0 and 12 V and connect the output to the circuit or device being tested.
For AC operation, select the required AC voltage and connect it to the AC circuit or component being tested.
The DC output has electronic current protection, while the AC output has circuit breaker protection for safety.
Where is it used
It is mainly used in:
Electronics laboratories
Electrical laboratories
AC and DC circuit experiments
Testing electronic components
Testing motors and transformers
Control circuit testing
Educational and training laboratories
Electronic equipment testing and repair
Its main purpose is to provide both adjustable regulated DC power and selectable AC power for electrical and electronic testing and experiments.
The M10‑AD153 AC & DC Power Supply is a compact and versatile unit designed for laboratories, education, and electronics testing. It provides both AC and regulated DC outputs, with the DC voltage continuously adjustable from 0 ~ 12V at 3A. Featuring electronic current protection for DC, selectable AC voltages (2V, 4V, 6V, 12V) at 3A, and circuit breaker protection for AC, it ensures safe and reliable operation. With stable regulation (750mV load, 20mV line) and low ripple (15mV), the M10‑AD153 delivers consistent performance for precision experiments. Compact at 3kg, it is ideal for students, engineers, and hobbyists requiring dual AC/DC power in one dependable unit.
