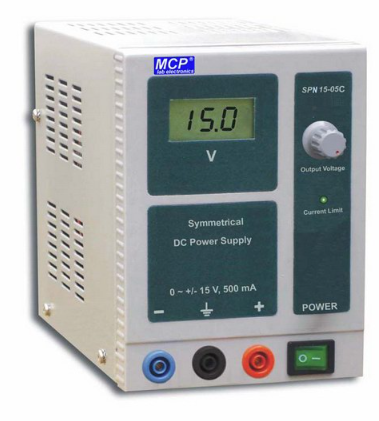

SPN15‑05C Symmetrical Adjustable DC Power Supply
BDT 8,790/-
Product Details
Brand: MCP
Model: SPN15‑05C
Country Of Origin: China
Features
.Easy and safety operation for students
.Mini and light
.Novel design and various types for you
| Output voltage: | 0 ~ ±15V |
| Output current: | 500mA |
| Load regulation: | 20mV |
| Line regulation: | 20mV |
| Ripple: | 10mV |
| Display: | 3‑digit LCD with backlight |
| Protection: | Over current |
| Input voltage: | 220 ~ 240VAC ±10%, 50Hz or 110 ~ 127VAC ±10%, 60Hz |
| Dimensions: | 108 (W) × 154 (H) × 240 (D) mm |
| Weight: | 2kg |
What is this
This is a variable DC power supply that can provide adjustable positive and negative DC voltage from 0 to plus or minus 15 V, with an output current of up to 500 mA.
How is it used
Set the required DC voltage and connect the output to the circuit or component being tested. The LCD shows the output value. The over current protection helps protect the power supply when excessive current is drawn.
The adjustable positive and negative output makes it suitable for circuits that require both positive and negative supply voltages.
Where is it used
It is mainly used in:
Electronics laboratories
Testing electronic circuits
Operational amplifier circuits
Analog circuit development
Sensor and measurement circuits
Educational and training laboratories
Electronic equipment repair and troubleshooting
Its main purpose is to provide a controlled positive or negative DC voltage for powering, testing, and developing electronic circuits.
The SPN15‑05C Symmetrical Adjustable DC Power Supply from the M10‑SPN Series is designed for safe and easy operation, making it ideal for students, laboratories, and educational environments. Compact and lightweight, it delivers an output voltage range of 0 ~ ±15V with a stable 500mA current. Featuring excellent regulation (20mV line and load), low ripple (10mV), and a clear 3‑digit LCD with backlight, it ensures precise and reliable performance. Built with over‑current protection and dual input voltage compatibility (220–240VAC or 110–127VAC), the SPN15‑05C is versatile and dependable. With a novel design and portable 2kg build, it is perfect for training, testing, and circuit development applications.
