S8-A2002B NEW CONCEPT AC POWER SUPPLY
BDT 23,177/-
Product Details
Brand: MCP
Model: S8-A2002B
Country Of Origin: China
Feature:
-
Output voltage: 1 ~ 20Vrms
-
Output frequency: 1 ~ 100Hz (1Hz adjusting)
-
Output current: 2Arms (adapter mode), 1Arms (battery mode)
-
Output accuracy: Voltage: ±(0.5% + 20 digits) @ 50Hz Frequency: 1%
-
Battery operation time: about 1.5 hours with full load
-
Power source: S8‑0004 adapter Input: 100 ~ 240 VAC, 50/60Hz, 1.5A Max Output: 24V, 5A Max Battery: 18650 Li‑ion battery (3.7V 3000mAh) × 6
-
Dimensions: 110 (W) × 75 (H) × 140 (D) mm
-
Weight: 800 g
| Output voltage: | 1 ~ 20Vrms |
| Output frequency: | 1 ~ 100Hz (1Hz adjusting) |
| Output current: | 2Arms (adapter mode), 1Arms (battery mode) |
| Output accuracy: | Voltage: ±(0.5% + 20 digits) @ 50Hz Frequency: 1% |
| Battery operation time: | about 1.5 hours with full load |
| Power source: | S8‑0004 adapter Input: 100 ~ 240 VAC, 50/60Hz, 1.5A Max Output: 24V, 5A Max Battery: 18650 Li‑ion battery (3.7V 3000mAh) × 6 |
| Dimensions: | 110 (W) × 75 (H) × 140 (D) mm |
| Weight: | 800 g |
What is this

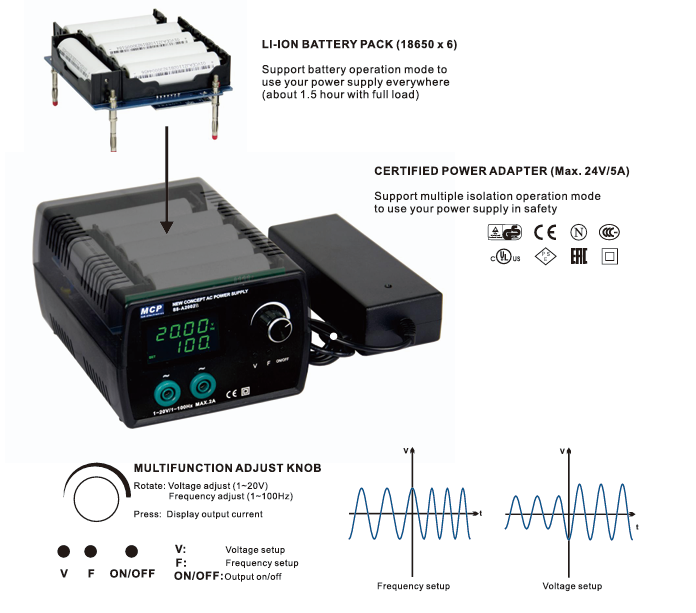

This is a portable AC signal generator or AC power source. It produces an adjustable AC output with a voltage of 1 to 20 Vrms and a frequency of 1 to 100 Hz.
How is it used
Set the required output voltage and frequency, then connect the output to the electrical or electronic device being tested.
It can operate from the supplied AC adapter or from its built in rechargeable battery. The adapter allows up to 2 Arms output, while battery operation allows up to 1 Arms.
Where is it used
It is mainly used for:
Electronics laboratory testing
Testing AC circuits and components
Testing sensors and measurement equipment
Testing motors and actuators
Signal testing and troubleshooting
Educational and training laboratories
Field testing where portable operation is required
Its main purpose is to provide a controlled low voltage AC signal with adjustable frequency for testing and measurement applications.
The S8‑A2002B Adjustable Signal Generator Power Supply is a versatile and portable solution for laboratories, education, and testing environments. It delivers an output voltage range of 1–20Vrms and an adjustable frequency range of 1–100Hz with 1Hz precision steps. Offering 2Arms in adapter mode and 1Arms in battery mode, it ensures reliable performance for sensitive experiments. With voltage accuracy of ±(0.5% + 20 digits) at 50Hz and frequency accuracy of 1%, this unit provides precise control for testing and training. Featuring up to 1.5 hours of battery operation, CE certification, and a compact lightweight design (800g), the S8‑A2002B is ideal for engineers, educators, and hobbyists who require dependable portable signal generation and power supply capabilities.
