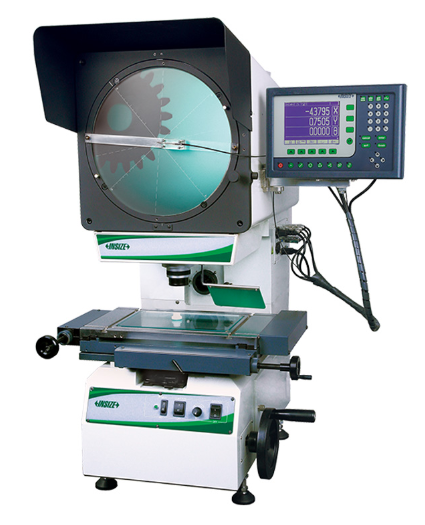

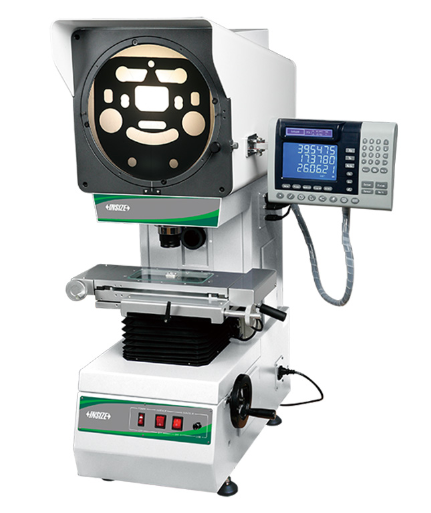

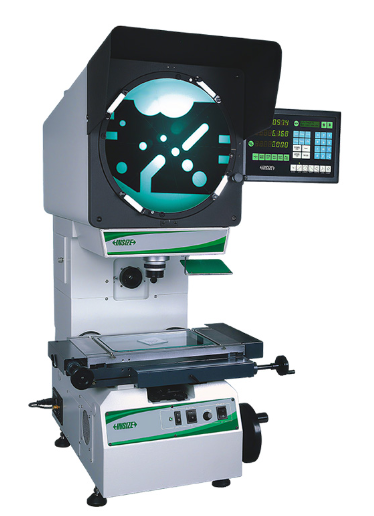

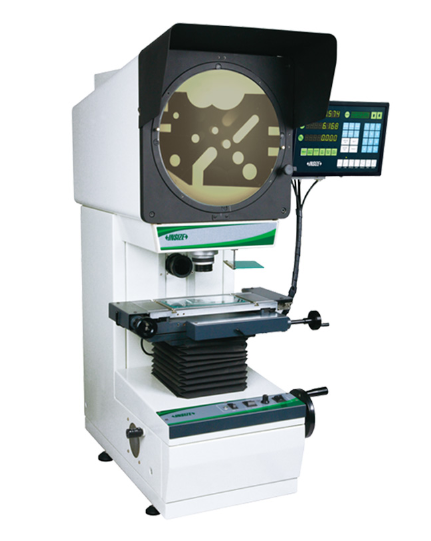

Profile Projectors (Basic Type)
BDT 0/-
Product Details
Brand: INSIZE
Model: ISP-D150A
Country Of Origin: China
Features:
Large Ø300mm rotating projection screen
High-precision X-Y stage (0.5µm resolution)
Includes 10X lens and dual halogen illumination
Advanced digital readout with geometric measurement functions
Durable construction with 4kg load capacity
Expandable with a wide range of optional lenses and accessories
| Projector Screen: | Ø300mm |
| Max. Workpiece Height: | 90mm |
| Stage Travel: | 150×50mm |
| Magnification: | 10X (included) |
| Weight: | 125kg |
| Power Supply: | 220V, 50/60Hz |
The INSIZE ISP-D150A Profile Projector (Basic Type) is a robust, optical measuring instrument designed for non-contact dimensional inspection of small to medium-sized workpieces. It features a large Ø300mm projection screen with a 360° rotating capability (1" or 0.05" resolution) and cross-hair reference lines for precise alignment. The standard configuration includes a 10X magnification lens with a Ø30mm view field and a 77.7mm working distance, providing clear, erect and inverted images.
The ISP-D150A is equipped with a precise X-Y stage (150x50mm travel) featuring 0.5µm resolution and an accuracy of (4+L/75)µm. Illumination is provided by adjustable 24V/150W halogen lamps for both contour and surface lighting, ensuring optimal visibility of complex geometries. The system includes a digital readout with advanced data processing functions (measuring points, lines, circles, angles, and distances) and RS232C output for data transfer. Built for durability and daily use, the unit weighs 125kg and operates on standard 220V power.
INSIZE ISP-D150A Profile Projector – Precision Optical Comparator
Achieve high-accuracy, non-contact dimensional measurement with the INSIZE ISP-D150A Profile Projector. Designed for quality control labs and manufacturing environments, this "Basic Type" optical comparator delivers clear, magnified images of workpieces for precise inspection of complex profiles, threads, and small components.
Key Features & Benefits:
-
Large Projection Screen: Features a Ø300mm screen with a 360° rotation range and 1" resolution, equipped with cross-hair reference lines for easy alignment and measurement.
-
Versatile Magnification: Supplied with a 10X lens (Ø30mm view field, 77.7mm working distance). Optional 20X, 50X, and 100X lenses are available for specialized inspection needs.
-
Precise X-Y Stage: The heavy-duty stage offers a 150×50mm travel range, a resolution of 0.5µm, and an accuracy of (4+L/75)µm, supporting workpieces up to 4kg.
-
Dual Illumination System: Equipped with 24V/150W halogen lamps for both contour and surface illumination, with adjustable brightness to enhance surface features and edge visibility.
-
Advanced Data Processing: The digital readout unit displays X-Y stage travel and screen rotation. It performs complex functions including measuring point coordinates, line coordinates, circle radii (from 3 points), angles, and distances between objects. It also supports programming for batch measurements.
-
Complete Turnkey Kit: Standard delivery includes the main unit, 10X lens with half-reflection mirror, foot-switch, overlay chart clips, and an anti-dust cover.
