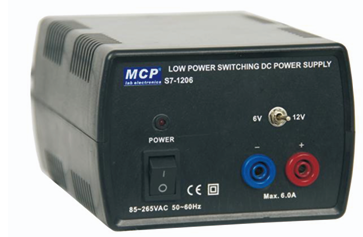

S7-1206 [2 Voltages] LOW POWER SWITCHING DC POWER SUPPLY
BDT 7,199/-
Product Details
Brand: MCP
Model: S7-1206
Country Of Origin: China
Feature:
-
Output voltage: 6V, 12V
-
Output current: 6A
| Output voltage: | 6V, 12V |
| Output current: | 6A |
| Line regulation: | 15mV |
| Load regulation: | 150mV |
| Ripple & Noise: | 35mVrms |
| Output accuracy: | 5% |
| Input voltage: | 85 ~ 265 VAC 50/60Hz |
| Dimensions: | 110 (W) × 75 (H) × 140 (D) mm |
| Weight: | 300 g |
What is this
This is a selectable DC power supply that provides 6 V or 12 V DC output with a maximum output current of 6 A.
How is it used
Select either 6 V or 12 V according to the requirements of the device or circuit. Connect the output to the DC circuit or equipment being tested.
The 6 A output capacity makes it suitable for applications that require more current than typical small electronic circuits.
Where is it used
It is mainly used in:
Electronics laboratories
Testing DC motors and other DC loads
Testing electronic circuits
Testing sensors and control equipment
Educational and training laboratories
Electronic equipment repair
DC circuit development and testing
Its main purpose is to provide selectable 6 V or 12 V DC power for testing and operating electronic and electrical devices that require higher current.
S7‑1206 Dual‑Voltage Low Power Switching Power Supply (CE Certified)
The S7‑1206 is a compact and powerful dual‑voltage power supply designed for laboratories, educational setups, and testing environments. It delivers selectable output voltages of 6V and 12V with a high output current of 6A, making it suitable for demanding experiments and training applications. With line regulation of 15mV, load regulation of 150mV, and ripple & noise limited to 35mVrms, this unit ensures stable and clean power delivery. Its output accuracy is rated at 5%, while the wide input voltage range of 85 to 265 VAC at 50/60Hz provides global compatibility. Measuring 110 × 75 × 140 mm and weighing only 300 g, the S7‑1206 is lightweight, portable, and easy to integrate into any workspace. Built with CE certification for safety and compliance, it is the ideal choice for educators, engineers, and hobbyists seeking a reliable dual‑voltage power supply solution.
