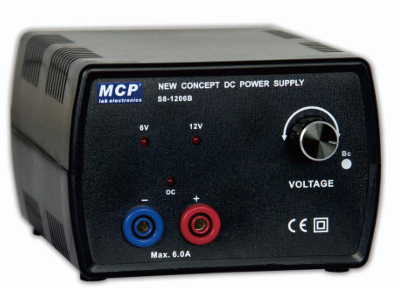

S8-1206B NEW CONCEPT DC POWER SUPPLY
BDT 12,993/-
Product Details
Brand: MCP
Model: S8-1206B
Country Of Origin: China
-
Output voltage: 6V / 12V
-
Output current: 6A (adapter mode), 2A (battery mode)
-
Line regulation: 15mV
-
Load regulation: <100mV
-
Ripple & Noise: 40mVrms
-
Output accuracy: 3%
-
Battery operation time: about 1.5 hours with full load
-
Power source: S8‑0004 adapter Input: 100 ~ 240 VAC, 50/60Hz, 1.5A Max Output: 24V, 5A Max Battery: 18650 Li‑ion battery (3.7V 3000mAh) × 6
-
Dimensions: 110 (W) × 75 (H) × 140 (D) mm
-
Weight: 800 g
| Output voltage: | 6V / 12V |
| Output current: | 6A (adapter mode), 2A (battery mode) |
| Line regulation: | 15mV |
| Load regulation: | <100mV |
| Ripple & Noise: | 40mVrms |
| Output accuracy: | 3% |
| Battery operation time: | about 1.5 hours with full load |
| Power source: | S8‑0004 adapter Input: 100 ~ 240 VAC, 50/60Hz, 1.5A Max Output: 24V, 5A Max Battery: 18650 Li‑ion battery (3.7V 3000mAh) × 6 |
| Dimensions: | 110 (W) × 75 (H) × 140 (D) mm |
| Weight: | 800 g |
-
Output voltage: 6V / 12V
-
Output current: 6A (adapter mode), 2A (battery mode)
-
Line regulation: 15mV
-
Load regulation: <100mV
-
Ripple & Noise: 40mVrms
-
Output accuracy: 3%
-
Battery operation time: about 1.5 hours with full load
-
Power source: S8‑0004 adapter Input: 100 ~ 240 VAC, 50/60Hz, 1.5A Max Output: 24V, 5A Max Battery: 18650 Li‑ion battery (3.7V 3000mAh) × 6
-
Dimensions: 110 (W) × 75 (H) × 140 (D) mm
-
Weight: 800 g
The S8‑1206B Dual‑Voltage Power Supply is a compact and portable solution for laboratories, education, and testing environments. It provides selectable 6V and 12V outputs with a powerful 6A current in adapter mode and 2A in battery mode. Designed for precision, it features line regulation of 15mV, load regulation under 100mV, and ripple & noise limited to 40mVrms, ensuring stable and clean power delivery. With up to 1.5 hours of battery operation, CE certification, and a lightweight design (800g), the S8‑1206B is ideal for engineers, educators, and hobbyists who need reliable portable dual‑voltage power.
