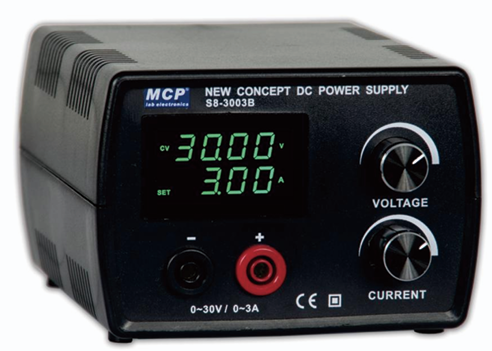

S8-3003B NEW CONCEPT POWER SUPPLY
BDT 14,398/-
Product Details
Brand: MCP
Model: S8-3003B
Country Of Origin: China
Feature:
-
Output voltage: 0 ~ 30V
-
Output current: 3A (adapter mode), 1A (battery mode)
| Output voltage: | 0 ~ 30V |
| Output current: | 3A (adapter mode), 1A (battery mode) |
| Line regulation: | CV 15mV, CC 15mA |
| Load regulation: | CV 100mV, CC 50mA |
| Ripple & Noise: | CV 10mVrms, CC 10mArms |
| Display accuracy: | ±(0.5% Rdg + 2 digits) ≥ 8V ±(1.0% Rdg + 2 digits) < 8V |
| Battery operation time: | about 1.5 hours with full load |
| Power source: | S8‑0004 adapter Input: 100 ~ 240 VAC, 50/60Hz, 1.5A Max Output: 24V, 5A Max Battery: 18650 Li‑ion battery (3.7V 3000mAh) × 6 |
| Dimensions: | 110 (W) × 75 (H) × 140 (D) mm |
| Weight: | 800 g |
What is this
This is a portable adjustable DC power supply that provides an output voltage from 0 to 30 V. It can operate from an AC adapter or its built in rechargeable battery.
How is it used
Set the required voltage and current, then connect the output to the electronic circuit or device being tested.
When connected to the AC adapter, it can provide up to 3 A. When operating from the battery, the maximum output current is 1 A.
The built in battery allows the power supply to be used without direct connection to AC mains for about 1.5 hours at full load.
Where is it used
It is mainly used in:
Electronics laboratories
Field testing and troubleshooting
Testing electronic circuits
Testing sensors and control circuits
Arduino and microcontroller projects
PCB testing and repair
Educational and training laboratories
Research and development
Portable electronics testing
Its main purpose is to provide adjustable DC power for testing and troubleshooting electronic circuits both in the laboratory and in locations where mains power is not readily available.
The S8‑3003B Adjustable Voltage Power Supply is a versatile and portable solution for laboratories, education, and testing environments. It delivers a wide output range of 0–30V with dual operating modes: 3A adapter mode and 1A battery mode. Featuring precision regulation, low ripple, and accurate digital display, it ensures stable performance for sensitive electronics. With up to 1.5 hours battery operation, CE certification, and a compact lightweight design (800g), the S8‑3003B is ideal for engineers, educators, and hobbyists who need reliable portable power.
