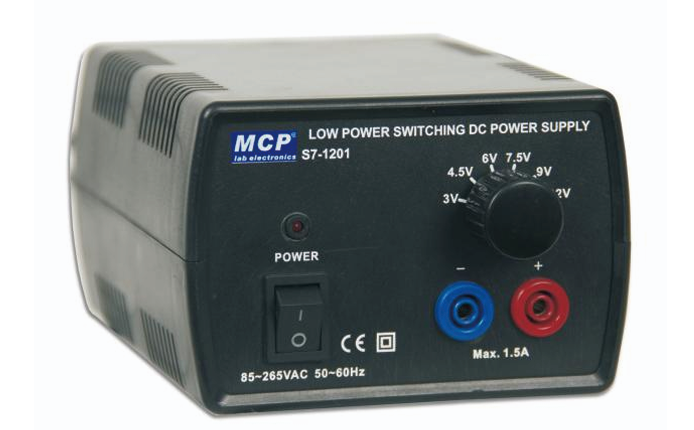

S7-1201 [6 VOLTAGES] LOW POWER SWITCHING DC POWER SUPPLY
BDT 5,794/-
Product Details
Brand: MCP
Model: S7-1201
Country Of Origin: China
Feature:
-
Output voltage: 3V, 4.5V, 6V, 7.5V, 9V, 12V
-
Output current: 1.5A
| Output voltage: | 3V, 4.5V, 6V, 7.5V, 9V, 12V |
| Output current: | 1.5A |
| Line regulation: | 15mV |
| Load regulation: | 50mV |
| Ripple & Noise: | 2mVrms |
| Output accuracy: | 5% |
| Input voltage: | 85 ~ 265 VAC 50/60Hz |
| Dimensions: | 110 (W) × 75 (H) × 140 (D) mm |
| Weight: | 300 g |
Adjustable Low Power Switching Power Supply
This compact and efficient power supply offers selectable output voltages of 3V, 4.5V, 6V, 7.5V, 9V, and 12V with a maximum output current of 1.5A, making it ideal for laboratory, educational, and testing applications. Designed for precision, it provides line regulation of 15mV, load regulation of 50mV, and ripple & noise limited to 2mVrms, ensuring stable and accurate performance. With an output accuracy of 5% and a wide input voltage range of 85 to 265 VAC at 50/60Hz, this unit is globally compatible. Its compact dimensions of 110 × 75 × 140 mm and lightweight 300 g design make it easy to integrate into any workspace while maintaining reliability and portability.
