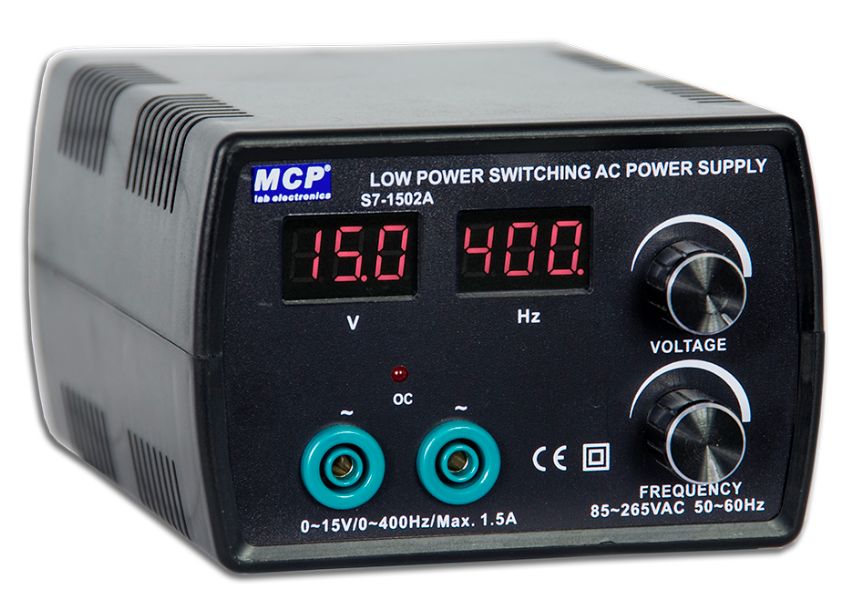

S7‑1502A Voltage & Frequency Adjustable LOW POWER SWITCHING POWER SUPPLY
BDT 10,535/-
Product Details
Brand: MCP
Model:S7-1502A
Country Of Origin: China
Feature:
.Output voltage: 1~15Vrms
.Output frequency: 0~100Hz (1Hz step), 100~400Hz (5Hz step), 50Hz, 60Hz, 100Hz, 400Hz
.Output current: 1.5A
| Output voltage: | 1~15Vrms |
| Output frequency: | 0~100Hz (1Hz step), 100~400Hz (5Hz step), 50Hz, 60Hz, 100Hz, 400Hz |
| Output current: | 1.5A |
| Output accuracy: |
Voltage:±(0.5%+2 digits)@50Hz(≥2Vrms) Frequency:2%(<20Hz),1%(20Hz~400Hz) |
| Input voltage: | 85~265VAC 50Hz/50Hz |
| Dimension: | 110(W) x 75(H) x140(D) mm |
| Weight: | 350g |
What is this
This is a compact programmable AC signal generator or AC power source. It produces adjustable AC voltage from 1 to 15 Vrms and adjustable frequency from 0 to 400 Hz.
How is it used
Set the required AC voltage and frequency, then connect the output to the circuit or device being tested.
The frequency can be adjusted from 0 to 100 Hz in 1 Hz steps and from 100 to 400 Hz in 5 Hz steps. Common frequencies such as 50 Hz, 60 Hz, 100 Hz and 400 Hz can also be selected directly.
Where is it used
It is mainly used in:
Electronics laboratories
AC circuit testing
Testing sensors and measurement equipment
Testing motors and electrical components
Frequency response testing
Signal testing and troubleshooting
Educational and training laboratories
Research and development
Its main purpose is to provide a controlled AC voltage and frequency for testing and analyzing electrical and electronic circuits.
S7‑1502A Voltage & Frequency Adjustable Low Power Switching Power Supply
The S7‑1502A is a compact and versatile low power switching power supply designed for precision and reliability in laboratory, educational, and light industrial applications. Featuring an adjustable output voltage range of 1 to 15 Vrms and frequency control from 0 to 100 Hz in 1 Hz steps and 100 to 400 Hz in 5 Hz steps, with fixed options at 50 Hz, 60 Hz, 100 Hz, and 400 Hz, this unit delivers flexibility for a wide range of testing and calibration needs. With a maximum output current of 1.5 A and accuracy of ±(0.5% + 2 digits) at 50 Hz for voltages ≥ 2 Vrms, along with frequency precision of ±2% below 200 Hz and ±1% between 200 Hz and 400 Hz, it ensures stable and consistent performance. The device supports a wide input voltage range of 85 to 265 VAC at 50/60 Hz, making it suitable for global use. Its compact dimensions of 110 × 75 × 140 mm and lightweight 350 g design make it easy to integrate into any workspace, while the multi‑function display provides clear, real‑time monitoring. Ideal for engineers, educators, and hobbyists, the S7‑1502A offers reliable power delivery with advanced control in a portable form factor.
