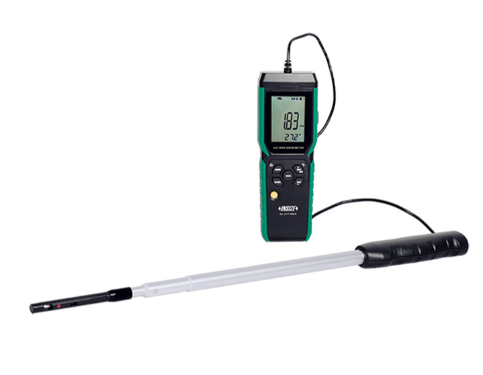

Hot Wire Anemometer
BDT 56,034/-
Product Details
Brand: INSIZE
Model: 0111-HW30
Country Of Origin: China
Features:
Measure with platinum resistance sensor, high accuracy and stability
Retractable aluminium alloy rod with slim probe, split design for convenient operation
Maximum/minimum/average mode
Over-range indication
Display with backlight
Low battery indication
| Wind velocity Range / Accuracy / Resolution |
0~30m/s / ±(4%+0.1m/s) / (specified environment temperature: 15°C~30°C) 0.01 (0~9.99) 0.1 (10.0~999.9) 1 (1000~9999) |
| Wind velocity Range / Accuracy / Resolution |
0~108km/h / ±(4%+0.4km/h) / (specified environment temperature: 15°C~30°C) 0.01 (0~9.99) 0.1 (10.0~999.9) 1 (1000~9999) |
| Wind velocity Range / Accuracy / Resolution |
0~58.3kn / ±(4%+0.2kn) / (specified environment temperature: 15°C~30°C) 0.01 (0~9.99) 0.1 (10.0~999.9) 1 (1000~9999) |
| Wind velocity Range / Accuracy / Resolution |
0~5906fpm / ±(4%+20fpm) / (specified environment temperature: 15°C~30°C) 0.01 (0~9.99) 0.1 (10.0~999.9) 1 (1000~9999) |
| Wind velocity Range / Accuracy / Resolution |
0~67.1mph / ±(4%+0.3mph) / (specified environment temperature: 15°C~30°C) 0.01 (0~9.99) 0.1 (10.0~999.9) 1 (1000~9999) |
| Wind velocity Range / Accuracy / Resolution | 0~11bft / ±1bft (specified environment temperature: 15°C~30°C) 1 |
| Wind Temperature Range / Accuracy / Resolution | 0°C~40°C / ±0.5°C / specified wind velocity: ≥1.5m/s 0.1 |
| Wind Temperature Range / Accuracy / Resolution | -20°C~0°C, 40°C~70°C / ±0.8°C / 0.1 |
| Wind flow |
maximum range: 9999×10² unit: m³/min, CFM, L/s area setting: area, circle (set radius), rectangle (set length and width) |
| Retractable rod length | 1.2m |
| Storage capacity | 99 groups |
| Operation environment | temperature: 0°C~40°C, humidity: ≤80%RH (no condensation) |
| Storage environment | temperature: -20°C~60°C, humidity: ≤80%RH (no condensation) |
| Power supply | 3×AAA battery |
| Dimension | 181×63×40mm |
| Weight | 350g |
The Insize 0111-HW30 is a professional Hot Wire Anemometer designed for high-precision air velocity, temperature, and flow measurements. Utilizing a platinum resistance sensor, this instrument delivers exceptional accuracy and stability, making it ideal for HVAC diagnostics, industrial hygiene, and environmental monitoring. Its split design features a retractable aluminum alloy rod extending up to 1.2m with a slim probe, allowing for convenient measurement in hard-to-reach ducts and vents.
The 0111-HW30 offers comprehensive measurement capabilities, including wind velocity in seven units (m/s, km/h, kn, fpm, mph, bft), wind temperature from -20°C to 70°C, and wind flow with area settings for circles and rectangles. The device features a backlit display, Max/Min/Average modes, over-range indication, and low battery alerts. With a storage capacity of 99 groups, it is powered by three AAA batteries and housed in a compact, durable casing weighing 350g.
Precision Airflow Analysis with the Insize 0111-HW30 Hot Wire Anemometer
Achieve laboratory-grade accuracy in the field with the Insize 0111-HW30 Hot Wire Anemometer. Engineered for professionals who demand reliable data, this advanced instrument uses a platinum resistance sensor to measure wind velocity, temperature, and flow with outstanding stability. Whether you are balancing HVAC systems, testing cleanrooms, or monitoring industrial airflow, the HW30 provides the precision you need.
Key Features and Benefits:
-
High-Accuracy Sensor: Utilizes a platinum resistance sensor for superior accuracy and stability in demanding environments.
-
Retractable Probe Design: Features a 1.2m retractable aluminum alloy rod with a slim probe, split for convenient operation in tight spaces.
-
Comprehensive Measurement: Measures wind velocity (0~30m/s) in 7 units, wind temperature (-20°C~70°C), and wind flow (m³/min, CFM, L/s) with customizable area settings.
-
User-Friendly Functions: Includes Max/Min/Average modes, over-range indication, backlit display, and low battery indication.
-
Data Storage: Stores up to 99 groups of measurement data for later review.
-
Portable and Durable: Powered by 3×AAA batteries and weighing just 350g, it is designed for extended field use.
