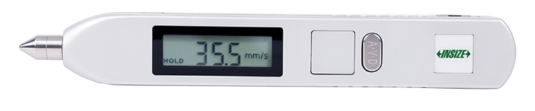

Vibration Pen (Three Parameters)
BDT 117,473/-
Product Details
Brand: INSIZE
Model: 0020-A199
Country Of Origin: China
Features:
Acceleration, velocity and displacement can be tested
Automatic power off
| Measuring range (acceleration) | 0.01~199.9m/s² (peak value) |
| Measuring range (velocity) | 0.01~199.9mm/s (virtual value) |
| Measuring range (displacement) | 0.001~1.999mm (peak-peak value) |
| Frequency | 10Hz~1kHz 10Hz~1kHz 10Hz~500Hz |
| Frequency response |
±5% (≥20Hz) -20%~+10% (<20Hz) |
| Linearity | ±(5%+2unit) |
| Indeterminacy of sensitivity | ≤3% |
| Operation temperature | 0°C~40°C/32°F~104°F |
| Operation humidity | <85% |
| Power supply | 2×LR44 battery (for 10 hours working) |
| Dimension | 150x22x18mm |
| Weight | 55g |
The Insize 0020-A199 is a compact and versatile Vibration Pen designed to measure three critical vibration parameters: acceleration, velocity, and displacement. This portable instrument is an essential tool for predictive maintenance, allowing technicians to quickly assess the condition of rotating machinery such as motors, pumps, and bearings. It features a clear LCD display and a simple interface for easy one-handed operation in the field.
With a measuring range of 0.01~199.9m/s² for acceleration, 0.01~199.9mm/s for velocity, and 0.001~1.999mm for displacement, this pen provides comprehensive diagnostic data. It offers a frequency range of 10Hz to 1kHz for acceleration and velocity, and 10Hz to 500Hz for displacement, ensuring accurate readings across common industrial vibration frequencies. The device is powered by two LR44 batteries, providing up to 10 hours of working time, and includes an automatic power-off feature to conserve battery life.
Fast and Reliable Machinery Diagnostics with the Insize 0020-A199 Vibration Pen
Monitor the health of your rotating equipment with the Insize 0020-A199 Vibration Pen. This three-parameter vibration meter is the ultimate portable solution for maintenance professionals, offering quick and accurate readings of acceleration, velocity, and displacement. By detecting early signs of imbalance, misalignment, or wear, this tool helps prevent costly downtime and extends the life of your machinery.
Key Features and Benefits:
-
Three Measurement Modes: Easily switch between Acceleration (0.01~199.9m/s²), Velocity (0.01~199.9mm/s), and Displacement (0.001~1.999mm) to suit your specific diagnostic needs.
-
Wide Frequency Range: Covers 10Hz~1kHz for acceleration and velocity, and 10Hz~500Hz for displacement, making it suitable for a wide variety of industrial applications.
-
High Accuracy: Features ±5% frequency response (≥20Hz) and a linearity of ±(5%+2unit), ensuring reliable data you can trust.
-
Portable and User-Friendly: The pen-style design (150x22x18mm) and lightweight build (55g) allow for easy handling, while the automatic power-off function preserves battery life.
-
Long Battery Life: Operates on 2× LR44 batteries, providing up to 10 hours of continuous use.
