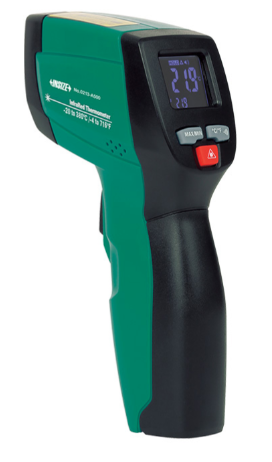

Infrared Thermometer (Standard Type)
BDT 8,359/-
Product Details
Brand: INSIZE
Model: 0213-A500
Country Of Origin: China
Features:
Unit: °C, °F
Dual-spot laser sighting
Negativity display
Automatic power off
Automatic data hold
Over range indicator
Max/Min display
| Temperature range | -20°C~380°C/-4°F~716°F |
| Temperature accuracy |
±2.5°C (at -20°C~20°C), ±2% or ±2.0°C (at 20°C~380°C) ±4.5°F (at -4°F~68°F), ±2% or ±3.6°F (at 68°F~716°F) |
| Temperature resolution | 0.1°C/0.1°F |
| Distance to spot size (D:S) | 12:1 |
| Emissivity | 0.95 (fixed) |
| Repeatability | ±1°C/1.8°F |
| Response time | 150ms |
| Spectral response | 8μm~14μm |
| Positioning laser |
dual-spot, class 2 laser product, output<1mW, wavelength 630nm~670nm |
| Operation temperature | 0°C~50°C/32°F~122°F |
| Operation humidity | 10%RH~90%RH |
| Storage temperature | -10°C~60°C/14°F~140°F |
| Storage humidity | <80%RH |
| Power supply | 1×9V battery |
| Dimension | 137×73×38mm |
| Weight | 135g |
The Insize 0213-A500 is a standard-type Infrared Thermometer designed for non-contact temperature measurement in industrial, electrical, and HVAC applications. With a temperature range of -20°C to 380°C (-4°F to 716°F) and a 12:1 distance-to-spot ratio, this handheld device allows for safe and accurate readings from a distance. The dual-spot laser sighting ensures precise targeting, making it easy to identify the exact measurement area.
The thermometer features a fixed emissivity of 0.95 and a fast response time of 150ms, with repeatability of ±1°C. It includes a clear display with Max/Min functions, over-range indication, and automatic data hold. Powered by a 9V battery, the unit is lightweight at 135g and compact (137×73×38mm), designed for comfortable one-handed operation. It operates effectively in temperatures from 0°C to 50°C and humidity up to 90%RH.
Non-Contact Temperature Measurement with the Insize 0213-A500 Infrared Thermometer
Quickly and safely measure surface temperatures with the Insize 0213-A500 Infrared Thermometer. This standard-type non-contact thermometer is ideal for electrical maintenance, HVAC diagnostics, automotive repair, and food safety inspections. With a 12:1 distance-to-spot ratio and dual-spot laser sighting, it provides accurate readings on moving objects, live electrical connections, and hard-to-reach areas.
Key Features and Benefits:
-
Wide Temperature Range: Measures from -20°C to 380°C (-4°F to 716°F) with 0.1°C/0.1°F resolution.
-
Dual-Spot Laser Sighting: Class 2 laser (output <1mW, 630nm~670nm) ensures precise targeting of measurement areas.
-
Fast and Reliable: Features a 150ms response time and ±1°C repeatability for quick, consistent results.
-
User-Friendly Functions: Includes Max/Min display, automatic data hold, over-range indicator, and negative display.
-
Portable Design: Lightweight (135g) and compact (137×73×38mm), powered by a standard 9V battery.
-
Clear Display: Shows readings in °C or °F with automatic power-off to conserve battery life.
