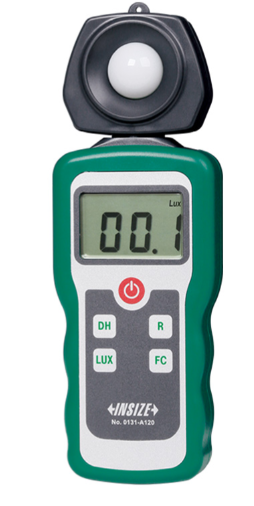

Light Meter (Economic Type)
BDT 12,246/-
Product Details
Brand: INSIZE
Model: 0131-A120
Country Of Origin: China
Features:
Photosensor can rotate 90° clockwise and 180° counterclockwise
Build-in calibration filters ensure the accuracy when
working in different colors
Data hold function
Lux/FC unit switch
Low battery alarm
| Measuring range | 0.1~199.9Lux 1~1999Lux 10~19990Lux 100~199900Lux |
| Resolution | 0.1Lux 1Lux 10Lux 100Lux |
| Measuring range | 0.01~19.99FC 0.1~199.9FC 1~1999FC 10~19990FC |
| Resolution | 0.01FC 0.1FC 1FC 10FC |
| Accuracy |
±(4%+10d), range<20000Lux/2000FC ±(5%+10d), range≥20000Lux/2000FC (d is resolution, calibrated with standard incandescent lamp at color temperature 2856K) |
| Repeatability | ±2% |
| Sampling time | 0.5s |
| Operation environment | 0~40°C, 0~70%RH |
| Storage environment | -10~50°C, 0~80%RH |
| Power supply | 9V battery |
| Dimension | 185×68×38mm |
| Weight | 130g |
The Insize 0101-A120 is a versatile digital light meter designed for precise illuminance measurement in lux (Lux) and foot-candles (FC). Its standout feature is a highly adjustable photosensor that rotates 90° clockwise and 180° counterclockwise, allowing users to easily position the sensor for optimal light capture in various orientations. Built-in calibration filters ensure accurate readings across different light colors, making it suitable for both indoor and outdoor applications, including photography, horticulture, and industrial safety inspections.
The meter offers four measurement ranges for both Lux and FC, providing resolutions from 0.1 Lux to 100 Lux. It features a clear LCD display, a data hold function, and a simple Lux/FC unit switch. Powered by a standard 9V battery, the device is lightweight (130g) and compact, with a low battery alarm to ensure reliable operation. It operates effectively in environments from 0°C to 40°C with humidity up to 70%RH.
Versatile Light Measurement with the Insize 0101-A120 Digital Light Meter
Ensure precise lighting conditions with the Insize 0101-A120 Digital Light Meter. Designed for professionals in photography, agriculture, architecture, and industrial safety, this reliable instrument measures illuminance in both Lux and Foot-Candles (FC). Its unique rotating photosensor head allows for flexible positioning, making it easy to measure light from any angle without repositioning the entire unit.
Key Features and Benefits:
-
Rotating Photosensor: The sensor head rotates 90° clockwise and 180° counterclockwise, providing ultimate flexibility for measuring light in confined spaces or specific directions.
-
Accurate Color Calibration: Built-in calibration filters ensure accuracy when working under different colored light sources.
-
Wide Measurement Range: Offers four ranges for Lux (0.1~199,900 Lux) and FC (0.01~19,990 FC) with high resolution down to 0.1 Lux.
-
User-Friendly Functions: Includes a data hold function, Lux/FC unit switch, and a low battery alarm for uninterrupted workflow.
-
Portable and Durable: Powered by a 9V battery and weighing only 130g, it is ideal for on-the-go measurements in operation environments of 0~40°C.
