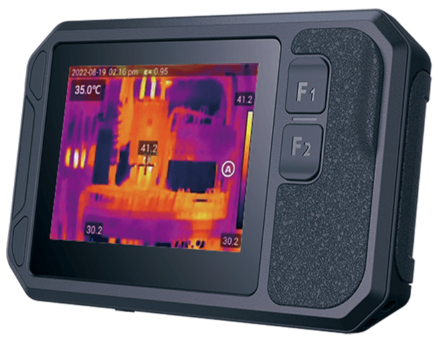

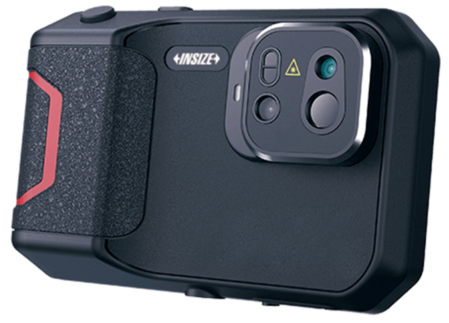

Pocket-Sized Thermal Camera
BDT 159,141/-
Product Details
Brand: INSIZE
Model: 0232-PC550
Country Of Origin: China
Features:
The 256×192 infrared detector produces crisp image
The IR, VIS, PIP and MIF reveal temperature details
-20°C to 550°C temperature range with auto-switching capability
Software is included
| Imaging and optics: Detector type | unrefrigerated vanadium oxide/7.5μm~14μm |
| Infrared resolution | 256×192@12μm |
| Thermal sensitivity/NETD | ≤45mK |
| Infrared frame rate | 25Hz/9HZ |
| Focal length | 3.2mm |
| Field of view | 56°×48° |
| Spatial resolution (IFOV) | 3.75mrad |
| Minimum object distance | 0.3m |
| Distance to spot size (D:S) | 266:1 |
| Focusing mode | focus-free |
| Digital zoom | 1.1x~8x |
| Laser ranging | ≤8m |
| Measurement and analysis: measurement range | support auto-switching: -20°C~150°C, 100°C~550°C |
| Measurement accuracy | ±2°C or ±2%, whichever is greater |
| Analyzed target s | pot×2 (include center spot), area×3 |
| Tracking/alarm |
full screen maximum/minimum temperature tracking; the maxium or minimum temperature tracking of analyzed target; full screen temperature threshold alarm (image and flash) |
| Temperature measuring parameter | emissivity, reflected temperature, target distance |
| Other | intelligently calculate the area |
| Image display: display screen | 3.5" LCD |
| Digital camera | 5MP |
| Image mode | IR, VIS, MIF, PIP |
| Image adjustment | level span mode: automatic, semi-automatic, manual |
| Color palettes | white hot, black hot, iron red, hot iron, rainbow, arctic |
| Function: recording function | photo |
| Cloud service | available |
| Other | customized physical button×2 |
| Storage and transmission: storage media | local storage (16GB) |
| Image storage | JPG with temperature information |
| External interface | TYPE-C |
| WIFI | can be connected to the mobile terminal for image transmission |
| Power system: battery type | rechargeable lithium-ion battery, working time≥4 hours |
| Charging mode | TYPE-C charging; PC/portable charger; capable of charging while using |
| Charging time | 90% of full charge in 2.5 hours |
| Environmental parameter: operation temperature | -10°C~50°C |
| Storage temperature - | 40°C~70°C |
| Protection | IP54, 1m drop test |
| Certification | CE, FCC, ROHS |
| Physical parameter: hardware | illuminator, Laser (indication, ranging) |
| Dimension | 138×89×35mm |
| Weight | 296g |
The Insize 0232-PC550 is a pocket-sized thermal camera engineered for professional thermal imaging and temperature analysis. Featuring a 256×192 infrared detector with a 12μm pixel pitch, it produces crisp, detailed images, while multiple imaging modes—IR, VIS, PIP, and MIF—reveal critical temperature variations. The device supports an auto-switching measurement range of -20°C to 550°C with ±2°C or ±2% accuracy, making it suitable for electrical inspection, building diagnostics, and mechanical maintenance.
Equipped with a 3.5" LCD and a 5MP digital camera, the PC550 offers six color palettes (white hot, black hot, iron red, hot iron, rainbow, arctic) and intelligent area calculation. It features full-screen max/min temperature tracking, threshold alarms, and laser ranging up to 8m. With 16GB of local storage, Wi-Fi connectivity, and Type-C charging, this IP54-rated, 1m drop-tested camera delivers reliable performance in harsh environments. The included software allows for further analysis on PC.
Professional Thermal Imaging in Your Pocket: Insize 0232-PC550 Thermal Camera
Discover the power of thermal diagnostics with the Insize 0232-PC550 Pocket-Sized Thermal Camera. Designed for electricians, HVAC technicians, and building inspectors, this compact yet powerful camera delivers high-resolution thermal imaging with a 256×192 infrared detector. Its auto-switching temperature range (-20°C to 550°C) and multiple image modes (IR, VIS, PIP, MIF) make it easy to identify overheating components, insulation gaps, and moisture intrusion.
Key Features and Benefits:
-
Crisp Thermal Imaging: 256×192 IR resolution with ≤45mK thermal sensitivity for clear, detailed images.
-
Versatile Imaging Modes: Switch between IR, VIS, PIP, and MIF to reveal temperature details and context.
-
Wide Temperature Range: Measures -20°C to 550°C with auto-switching and ±2°C/±2% accuracy.
-
Advanced Analysis: Full-screen max/min tracking, spot×2 and area×3 analysis, and intelligent area calculation.
-
User-Friendly Display: 3.5" LCD with six color palettes and level span adjustment (auto, semi-auto, manual).
-
Connectivity & Storage: 16GB local storage, Wi-Fi image transmission, and Type-C charging with 4+ hours of battery life.
-
Rugged & Portable: IP54 waterproof rating, 1m drop test, and lightweight 296g design.
