UV Light Meter
BDT 182,461/-
Product Details
Brand: INSIZE
Model: 0132-UV199
Country Of Origin: China
Features:
Self-recognize probes
Real-time value, maximum value, minimum value, average value, time, energy value are displayed at the same time
USB interface for data transmission
| Application | general purpose low power UVA intensity and energy measurement |
| Probe code | 0132-UVA1 (included) |
| Spectral response |
λp=365nm 315nm~400nm |
| Power measuring range | 0~200000μW/cm² |
| Resolution | 0.1μW/cm² |
| Energy measuring range | 0-9999999μJ/cm² |
| Measuring accuracy | ±10% |
| Record time | 0-99999s |
| Sampling speed | 6 times/second |
| Measuring unit | μW/cm² (default), mW/cm², W/m² |
| Test hole diameter | Ø10mm |
| Probe size | 39×32×15mm |

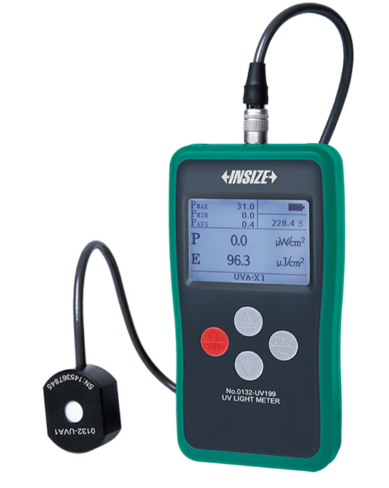

The Insize 0132-UV199 is a professional UV Light Meter designed for precise measurement of UVA intensity and energy. Equipped with a self-recognizing probe (0132-UVA1 included), this instrument is ideal for applications requiring general-purpose low-power UVA monitoring, such as UV curing, phototherapy, and industrial inspection. The meter features a spectral response range of 315nm to 400nm with a peak wavelength of 365nm, ensuring accurate readings for standard UVA sources.
The device simultaneously displays real-time, maximum, minimum, and average values, along with time and energy measurements, providing comprehensive data at a glance. With a power measuring range of 0~200000μW/cm² and a resolution of 0.1μW/cm², it delivers high precision with ±10% accuracy. Data can be transmitted via USB interface for further analysis. The probe features a Ø10mm test hole and a compact 39×32×15mm size, making it suitable for various field applications.
Precision UV Measurement with the Insize 0132-UV199 UV Light Meter
Monitor UVA intensity and energy with confidence using the Insize 0132-UV199 UV Light Meter. Designed for professionals in UV curing, medical phototherapy, and industrial quality control, this advanced instrument delivers accurate readings with a spectral response of 315nm to 400nm (peak 365nm). Its self-recognizing probe simplifies setup, while the large display presents real-time, max, min, and average values alongside time and energy data simultaneously.
Key Features and Benefits:
-
Self-Recognizing Probe: Automatically detects the included 0132-UVA1 probe for seamless operation.
-
Comprehensive Data Display: Shows real-time, maximum, minimum, average, time, and energy values all at once for efficient monitoring.
-
Wide Measuring Range: Measures power from 0~200000μW/cm² with 0.1μW/cm² resolution and energy from 0-9999999μJ/cm².
-
Multiple Units: Supports μW/cm² (default), mW/cm², and W/m² for versatile reporting.
-
High Accuracy: Delivers ±10% measuring accuracy for reliable data.
-
USB Data Transmission: Easily export measurement data to a computer for analysis and record-keeping.
-
Fast Sampling: Captures data at 6 times per second for dynamic measurements.
