Vibration Meter
BDT 116,720/-
Product Details
Brand: INSIZE
Model: 0022-VM20
Country Of Origin: China
Features:
Can measure vibration frequency
Can measure virtual value/peak value/peak-peak value of acceleration, velocity and displacement
Suitable for factory inspection, status monitoring and fault diagnosis of mechanical equipment's such as motors, pumps, fans, household appliances, compressors, smoke machines, generators, gearboxes, etc.
Software is included: on-line monitoring, data storage
| Measuring range (acceleration) | 0.01~200m/s² (peak value) |
| Measuring range (velocity) | 0.1~200mm/s (virtual value) |
| Measuring range (displacement) | 0.01~2mm (peak-peak value) |
| Frequency range | 10Hz~5kHz 10Hz~1kHz 10Hz~500Hz |
| Amplitude frequency response | ±5% |
| Amplitude linearity | ±5% |
| Frequency accuracy | ±0.5% |
| Cut-off frequency (second-order high-pass filtering) |
8kHz sampling frequency: 3.16Hz, 10.00Hz, 31.60Hz, N/A (adjustable) 32kHz sampling frequency: 12.64Hz, 40.00Hz, 126.4Hz, N/A (adjustable) |
| Display | 1.96" 128×64 dot matrix OLED screen |
| Language | Chinese, English, Portuguese |
| Power | <80mA/5V |
| Power supply | 4×AAA batteries: 6.0V/1000mAh; AC/DC adapter: 5V/2A |
| Operation condition | temperature: -10°C~50°C; humidity: 25%RH~90%RH, non-condensing; pressure: 65kPa~108kPa |
| Dimension | 172×69×26mm |
| Weight | 240g |
The Insize 0022-VM20 is a professional-grade Vibration Meter engineered for comprehensive machinery diagnostics and status monitoring. This advanced instrument measures three key vibration parameters—acceleration, velocity, and displacement—in virtual, peak, and peak-peak values. With a wide frequency range of up to 5kHz for acceleration and a measuring range of 0.01~200m/s², it is highly effective for fault diagnosis in motors, pumps, fans, compressors, generators, and gearboxes.

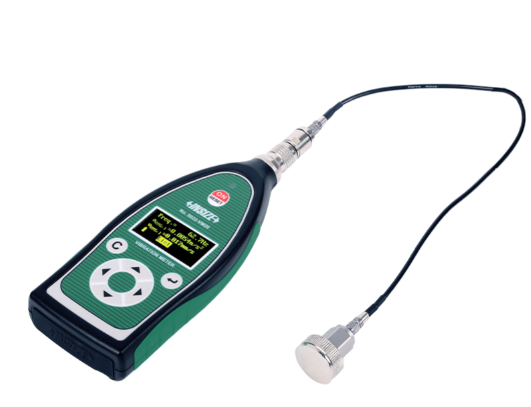

The VM20 features a high-resolution 1.96" OLED screen and includes a 2-meter accelerometer cable with a magnetic base for quick and secure mounting on machinery. It offers adjustable second-order high-pass filtering for precise frequency analysis. Data can be monitored in real-time via the included PC software, which displays bar charts and line charts and allows for seamless export to Excel. Powered by four AAA batteries or an AC/DC adapter, this 240g meter is built for portability and sustained field use in harsh industrial environments.
Advanced Machinery Diagnostics with the Insize 0022-VM20 Vibration Meter
Take control of your predictive maintenance program with the Insize 0022-VM20 Vibration Meter. This high-performance instrument is designed for factory inspection, status monitoring, and fault diagnosis of mechanical equipment. By accurately measuring acceleration, velocity, and displacement, the VM20 helps you detect imbalances, misalignments, and bearing wear before they lead to costly breakdowns.
Key Features and Benefits:
-
Comprehensive Measurement: Measures virtual value, peak value, and peak-peak value for acceleration, velocity, and displacement, providing a complete picture of machine health.
-
Wide Frequency Range: Covers 10Hz~5kHz for acceleration, 10Hz~1kHz for velocity, and 10Hz~500Hz for displacement, suitable for a wide range of rotating machinery.
-
High Accuracy: Features ±5% amplitude frequency response and linearity, with ±0.5% frequency accuracy for reliable diagnostics.
-
Real-Time PC Monitoring: Includes software for real-time data collection via USB, displaying bar and line charts, with export to Excel for detailed analysis.
-
Field-Ready Design: Comes with a 2m accelerometer cable, magnetic base, and M5 screw for easy mounting, plus a bright OLED display for clear readings in various lighting conditions.
-
Long Battery Life: Powered by 4× AAA batteries (6.0V/1000mAh) with AC/DC adapter option, ensuring extended operation in the field.
