158-PIECE JIG SET FOR CMM
BDT 0/-
Product Details
Brand: INSIZE
Model: ISY-100
Country Of Origin: China
Features:
Ultimate 158-piece comprehensive modular kit
Includes two large 400x400mm M8 base plates
Wide variety of support heads (aluminum and nylon)
Fine adjustment stands for precise positioning
Organized, durable hard case for easy storage and transport
Complete with essential setup accessories (markers, tools, oil)
Highly customizable for complex CMM inspection
| Total Pieces: | 158 |
| Base Plate Size: | 400Ã400Ã12mm (2 pieces) |
| Thread Size: | M8Ã1.25 |
| Materials: | Aluminum, Nylon, Stainless Steel |
| Included: | Assorted stands, support heads, base plates, V-supports, clips, wrenches, markers, dust cleaner, and lubricating oil. |

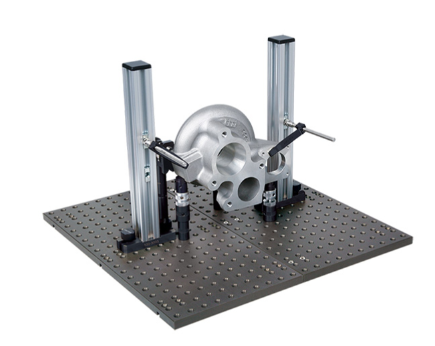

The INSIZE ISY-100 158-Piece Jig Set is an all-encompassing, professional-grade modular fixturing system designed to hold complex and irregularly shaped workpieces during Coordinate Measuring Machine (CMM) inspection. Packaged in a durable, organized hard case, this comprehensive kit provides metrology labs and quality control departments with every component needed to build custom, highly stable support structures.
The set includes two large 400x400mm base plates with an M8 hole pattern, a vast array of stands (standard, fine adjustment, horizontal, and magnetic), V-shaped supports, clips, and a wide variety of support heads in both aluminum and nylon. The inclusion of essential accessories like wrenches, markers, a dust cleaner, and lubricating oil makes this a true turnkey solution. Ideal for inspecting complex castings, turbo housings, and intricate machined parts, this 158-piece system ensures repeatable, accurate, and efficient measurement setups.
The INSIZE ISY-100 158-Piece Jig Set is a comprehensive modular fixturing system designed for Coordinate Measuring Machine (CMM) inspection. It includes adjustable stands, magnetic supports, aluminum and nylon support heads, V-shaped supports, clip stands, and specialized fixtures for securely positioning complex, heavy, and delicate workpieces. The set features two 400 × 400 × 12 mm base plates with M8 threaded holes spaced 20 mm apart, along with essential accessories and a 52-piece marker set. All components are organized in a durable carrying case for convenient storage, transport, and efficient precision measurement.
