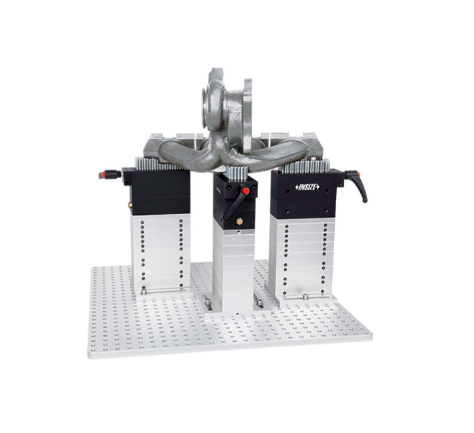

28-PIECE JIG SET
BDT 0/-
Product Details
Brand: INSIZE
Model: ISY-400
Country Of Origin: China
Features:
Comprehensive 28-piece modular setup
Ø6mm anvils for robust, stable contact
Large 500x500mm base plate for big parts
Includes multiple block heights (20mm & 30mm) and connecting plates
Secure clamping with included handles
Fully customizable for specific workpiece geometries
| Anvil Diameter: | Ø6mm |
| Base Plate Size: | 500×500×12mm |
| Spring Anvil Size: | 135×60×90mm |
| Anvil Stroke: | 24mm |
| Included Components: | 3x Spring anvils, 9x 20mm blocks, 9x 30mm blocks, 1x base plate, 3x connecting plates, 3x clamp handles. |
The INSIZE ISY-400 CMM Jig Set is a heavy-duty, 28-piece modular fixturing system designed to securely hold large and complex workpieces during Coordinate Measuring Machine (CMM) inspection. Featuring robust Ø6mm spring anvils and a substantial 500x500mm base plate, this kit is built for stability and precision in demanding metrology environments.
The set includes three spring anvils, nine 20mm blocks, nine 30mm blocks, three connecting plates, and three clamp handles. This extensive array of modular components allows metrology professionals to quickly assemble custom support structures for a wide variety of part geometries, ensuring repeatable and highly accurate measurement results. The system is marked as customizable, allowing it to be tailored to specific industrial inspection challenges.
INSIZE ISY-400 CMM Jig Set – 28-Piece Modular Fixture System with Ø6mm Anvils
Ensure absolute stability for your largest inspections with the INSIZE ISY-400 CMM Jig Set. Designed for advanced metrology and quality control applications, this heavy-duty 28-piece modular fixture system provides everything needed to securely position large or complex workpieces on a Coordinate Measuring Machine (CMM).
Key Features & Benefits:
-
Heavy-Duty Foundation: Includes a large 500x500x12mm base plate (ISY-400-4) that provides a rock-solid platform for securing heavy components.
-
Robust Spring Anvils: The kit features three Ø6mm spring anvils (ISY-400-1) with a 36x100mm anvil area and a 24mm stroke, ensuring reliable and repeatable contact with your workpiece.
-
Extensive Modularity: Contains 18 blocks in two different heights (ISY-400-2 and ISY-400-3), three connecting plates (ISY-400-5), and three clamp handles (ISY-400-6), allowing you to build highly customized support structures for virtually any part shape.
-
Customizable Design: Marked as "Can be customized," this system can be tailored to meet specific industry or part requirements.
-
Durable Construction: Built with high-quality materials to withstand the rigors of daily use in precision inspection environments.
