46-PIECE JIG SET
BDT 0/-
Product Details
Brand: INSIZE
Model: ISY-300
Country Of Origin: China
Features:
Massive 46-piece modular kit for unlimited setup configurations
Precision Ø2.5mm anvil system for stable contact
Wide variety of blocks, plates, clips, and stands included
Secure and repeatable workpiece positioning
Durable construction for demanding metrology environments
Fully customizable to meet specific part geometry needs
| Anvil Diameter: | Ø2.5mm |
| Base Plate Size: | 300×300×12mm (M8 Holes) |
| Spring Anvil Size: | 60×40×75mm / Ø26×73mm |
| Anvil Stroke: | 14mm |
| Included Components: | Base plate, spring anvils, blocks, connecting plates, clips, clip stands, and connecting blocks. |

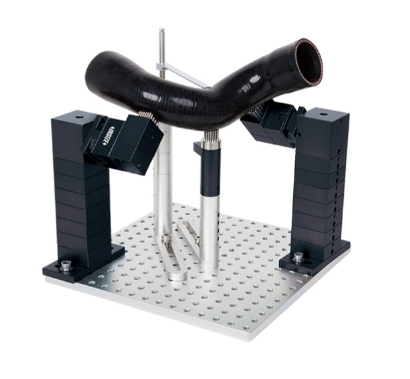

The INSIZE ISY-300 CMM Jig Set is an advanced, highly comprehensive 46-piece modular fixturing system designed to securely hold complex and irregularly shaped workpieces during Coordinate Measuring Machine (CMM) inspection. Featuring a precision Ø2.5mm anvil system, this extensive kit provides metrology professionals with the ultimate flexibility to build custom holding setups.
The set includes a sturdy 300x300x12mm M8 base plate, two types of spring anvils (standard and hexagonal), various blocks (square and cylindrical), connecting plates, clips, and clip stands. This massive array of interchangeable components allows for the precise positioning and clamping of complex parts, such as pipes, castings, and machined components, ensuring repeatable and highly accurate measurement results. The entire system is marked as customizable, making it adaptable to specific, challenging inspection requirements.
INSIZE ISY-300 CMM Jig Set – 46-Piece Modular Fixture System with Ø2.5mm Anvils
Master the most complex inspection setups with the INSIZE ISY-300 CMM Jig Set. Designed for advanced metrology and quality control applications, this comprehensive 46-piece modular fixture system provides everything needed to securely hold and position irregularly shaped workpieces on a Coordinate Measuring Machine (CMM).
Key Features & Benefits:
-
Ultimate Modularity: With 46 individual pieces, including various blocks, connecting plates, clips, and stands, you can build highly customized support structures for virtually any part geometry.
-
Precision Spring Anvils: The kit features both a standard spring anvil (ISY-300-2) and a hexagonal spring anvil (ISY-300-3), both with a Ø2.5mm contact point and a 14mm stroke for reliable, repeatable holding.
-
Solid Foundation: Includes a large 300x300x12mm base plate (ISY-300-1) with standard M8 threaded holes, providing a rock-solid base for your fixture assemblies.
-
Versatile Components: Contains a wide array of blocks (square and cylindrical), connecting plates of varying lengths, and secure clip mechanisms to handle complex clamping scenarios.
-
Customizable Design: Marked as "Can be customized," this system can be tailored to meet the most specific industry or part requirements.
-
Durable Construction: Built with high-quality materials to withstand the rigors of daily use in precision inspection environments.
