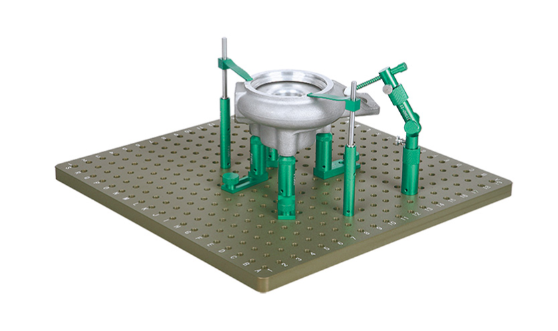

99-Piece Jig Set For CMM
BDT 0/-
Product Details
Brand: INSIZE
Model: ISY-600
Country Of Origin: China
Features:
Comprehensive 99-piece modular kit
Organized acrylic storage tray included
Wide variety of stands, supports, and magnetic bases
Includes aluminum and nylon support heads for versatility
Large 400x400mm M8 base plate for stable setups
Ideal for complex CMM workpiece fixturing
| Base Plate Size: | 400Ã400Ã18mm |
| Thread Size: | M8Ã1.25 |
| Included Storage: | Acrylic Tray |
| Components: | Assorted stands, support heads, clips, V-supports, magnetic stands, adaptors, and base plate. |
The INSIZE ISY-600 99-Piece Jig Set is a comprehensive, precision-engineered modular fixturing system designed to securely hold complex workpieces during Coordinate Measuring Machine (CMM) inspection. Organized in a convenient, included acrylic tray for easy access and storage, this kit provides metrology professionals with an extensive variety of components to build stable and repeatable measurement setups.
The set features an impressive array of stands (ranging from Ø13mm to Ø26mm), fine adjustment stands, spring stands, universal supports, and magnetic stands. It also includes an assortment of support heads (aluminum and nylon), V-shaped supports, clips, and adaptors. The system is anchored by a robust 400x400x18mm base plate featuring an M8x1.25 threaded hole grid. This 99-piece kit is the ultimate solution for inspecting intricate castings, machined components, and irregular parts with maximum efficiency and precision.
The INSIZE ISY-600 99-Piece Jig Set is a professional modular fixturing kit designed for CMM dimensional inspection and quality control. It includes various stands, spring supports, fine adjustment stands, magnetic stands, aluminum and nylon support heads, V-shaped supports, chuck supports, and sliding support plates to securely position workpieces of different shapes and sizes. The kit features a 400 × 400 × 18 mm base plate with M8 × 1.25 threaded holes and an acrylic storage tray for organized component management. It helps improve measurement stability, accuracy, and repeatability in metrology laboratories and manufacturing facilities.
