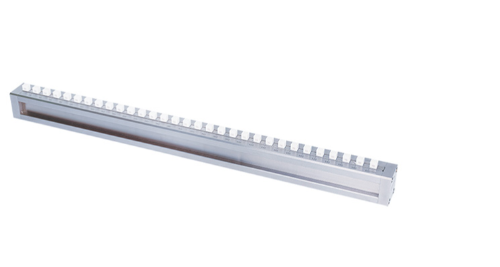

CMM Check Masters
BDT 0/-
Product Details
Brand: INSIZE
Model: 6882-300A
Country Of Origin: China
Features:
To check the accuracy of table movements of machine tools and calibrate CMM, digital height gauge, height gauge, caliper
Horizontal use and vertical use
Constructed with ceramic gauge blocks
Optional accessory: stand
| Type: | CMM Check Master (Standard Accuracy) |
| Size: | 0-300mm |
| Step: | 10mm |
| Accuracy: | ±1.3µm |
| Dimensions (A/B): | 310mm / 350mm |
| Material: | Ceramic gauge blocks |
| Included: | Manufacturer inspection certificate |
The INSIZE 6882-300A CMM Check Master is a precision calibration artifact designed to verify the accuracy of table movements on machine tools and calibrate Coordinate Measuring Machines (CMMs), digital height gauges, and calipers. Constructed with high-quality, wear-resistant ceramic gauge blocks arranged in 10mm steps, it provides a reliable reference for both inside, outside, and height measurements within the 0-300mm range.
Designed for versatile use, it can be employed in both horizontal and vertical orientations. The standard accuracy model delivers a high precision of ±1.3µm (for ranges ≤300mm). It is supplied with a manufacturer inspection certificate for guaranteed traceability. An optional dedicated stand (6882-S1) is available for vertical setups, enhancing stability and ease of use.
INSIZE 6882-300A CMM Check Master – Ceramic Calibration Standard
Ensure the accuracy of your metrology equipment with the INSIZE 6882-300A CMM Check Master. Designed for rigorous quality control and calibration, this precision artifact is essential for verifying the table movements of machine tools and calibrating Coordinate Measuring Machines (CMMs), height gauges, and calipers.
Key Features & Benefits:
-
Premium Ceramic Construction: Constructed with high-grade ceramic gauge blocks, offering excellent wear resistance, thermal stability, and long-lasting accuracy compared to steel alternatives.
-
Versatile Measurement Applications: Provides precise reference values for inside measurements, outside measurements, and height measurements across a 0-300mm range.
-
Multi-Directional Use: Specifically designed to be utilized in both horizontal and vertical orientations, accommodating various calibration setups.
-
Standard Precision: Delivers a reliable standard accuracy of ±1.3µm for measurement ranges up to 300mm.
-
Incremental Steps: Features a 10mm step layout, allowing for systematic verification of machine axis movements and probe accuracy.
-
Certified Quality: Supplied with a manufacturer inspection certificate to ensure traceability and confidence in your calibration process.
-
Optional Stand: For vertical use, pair it with the optional dedicated stand (code 6882-S1) for maximum stability on a surface plate or CMM table.
