Gauge Block Stand For CMM
BDT 0/-
Product Details
Brand: INSIZE
Model: 6885-1000
Country Of Origin: China
Features:
Made of aluminum
Used with gauge blocks to calibrate CMM
Optional accessory: gauge blocks (4101, 4103 and 4104 series)
| Type: | Gauge Block Stand for CMM |
| Material: | Aluminum |
| Length L Options: | 500, 600, 650, 700, 750, 800, 850, 900, 1000mm |
| Height (H) Options: | 235, 355, 475mm |
| Adjustments: | 0-360° rotation, 0-90° tilt |
| Included Accessories: | 2x Height columns, 4x Extension plates |
| Optional Accessories: | Gauge blocks (4101, 4103, 4104 series) |

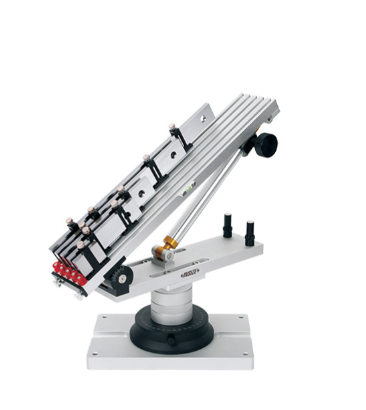

The INSIZE 6885-1000 Gauge Block Stand for CMM is a robust, highly adjustable fixture designed to securely hold gauge blocks during the calibration and verification of Coordinate Measuring Machines. Constructed from durable aluminum, it offers exceptional stability while remaining relatively lightweight.
The stand features a highly versatile design with a base that rotates a full 0-360° and an inclined rail that tilts from 0° to 90°, allowing users to position gauge blocks at virtually any orientation required for complex calibration routines. It comes equipped with two included height columns and four extension plates to accommodate various gauge block lengths (ranging from 500mm up to 1000mm) and heights (235mm, 355mm, or 475mm). While gauge blocks (4101, 4103, and 4104 series) are sold separately, this stand provides the perfect platform to create precise reference geometries for comprehensive CMM accuracy testing.
INSIZE 6885-1000 Gauge Block Stand – Adjustable CMM Calibration Fixture
Achieve precise and reliable CMM calibration with the INSIZE 6885-1000 Gauge Block Stand. Designed for metrology labs and quality control departments, this heavy-duty aluminum stand provides a stable, highly adjustable platform for holding gauge blocks during the verification of Coordinate Measuring Machine accuracy.
Key Features & Benefits:
-
Ultimate Adjustability: Features a dual-axis adjustment system. The base offers a full 360° rotation, while the main rail can be tilted from 0° to 90° (Level position), allowing you to create complex reference geometries with ease.
-
Sturdy Aluminum Build: Constructed from high-quality aluminum to ensure rigid support and stability, minimizing vibration and flexing during measurement routines.
-
Complete Fixture Kit: Comes standard with two height columns and four extension plates, enabling you to configure the stand for long lengths (up to 1000mm) and various heights (235mm, 355mm, or 475mm).
-
Optimized for CMM: Specifically engineered to interface with INSIZE gauge blocks (4101, 4103, and 4104 series - sold separately) for comprehensive CMM calibration and error mapping.
-
Precision Engineering: Designed to hold gauge blocks securely in place at precise angles for checking probe accuracy, volumetric errors, and repeatability.
