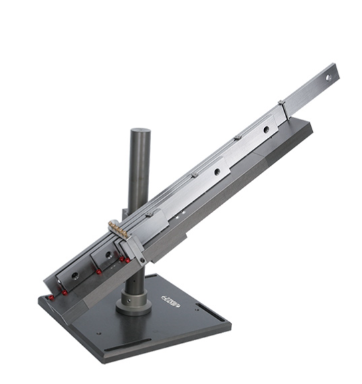

Gauge Block Stand For CMM
BDT 0/-
Product Details
Brand: INSIZE
Model: 7398-1000
Country Of Origin: China
Features:
Made of aluminum
Used in conjunction with a gauge block to calibrate and compensate for CMM errors
Minimum height for CMM: 400mm
Angle adjustment range (0-90°)
Optional accessory: gauge blocks (4101, 4103 and 4104 series)
| Type: | Gauge Block Stand for CMM (Basic Type) |
| Material: | Aluminum |
| Angle Adjustment: | 0-90° |
| Applicable Block Length: | 30mm to 1000mm |
| Column Height: | 450mm |
| Minimum CMM Height: | 400mm |
| Included Components: | Short stand, long stand, short extension block, long extension block |
| Optional Accessories: | Gauge blocks (4101, 4103, 4104 series) |
The INSIZE 7398-1000 Gauge Block Stand (Basic Type) is a precision fixture designed to securely hold gauge blocks for the calibration and error compensation of Coordinate Measuring Machines. Constructed from durable aluminum, it provides a stable and rigid platform.
The stand features an angle adjustment range of 0° to 90°, allowing metrology professionals to position gauge blocks at various orientations to check CMM volumetric accuracy. It includes both a short stand (420mm) and a long stand (655mm), along with short and long extension blocks to accommodate gauge blocks ranging from 30mm up to 1000mm in length. The system has a minimum height requirement of 400mm for the CMM and features a 450mm column height. While the gauge blocks (4101, 4103, and 4104 series) are sold separately, this comprehensive kit provides everything needed to create a reliable calibration setup.
INSIZE 7398-1000 Gauge Block Stand – Basic CMM Calibration Fixture
Ensure your Coordinate Measuring Machine is performing at its peak accuracy with the INSIZE 7398-1000 Gauge Block Stand (Basic Type). Designed for metrology labs and quality control departments, this robust aluminum fixture provides a stable and highly adjustable platform for holding gauge blocks during CMM calibration and error compensation routines.
Key Features & Benefits:
-
Adjustable Angle Range: Features a 0-90° angle adjustment capability, allowing you to position gauge blocks at various inclinations to thoroughly test your CMM's volumetric accuracy and probe performance.
-
Versatile Configuration: The kit comes complete with a short stand (L1: 420mm), a long stand (L2: 655mm), a short extension block, and a long extension block, providing flexibility for different measurement setups.
-
Wide Compatibility: Capable of accommodating gauge blocks ranging from 30mm up to 1000mm in length. (Gauge blocks from the 4101, 4103, and 4104 series are available as optional accessories).
-
Sturdy Aluminum Build: Constructed from high-quality aluminum to ensure rigid support and thermal stability during critical calibration procedures.
-
Optimal Height: Features a 450mm column height, with a minimum height requirement of 400mm for the CMM.
-
Easy Setup: The modular design allows for quick assembly and secure positioning of gauge blocks on the CMM table.
