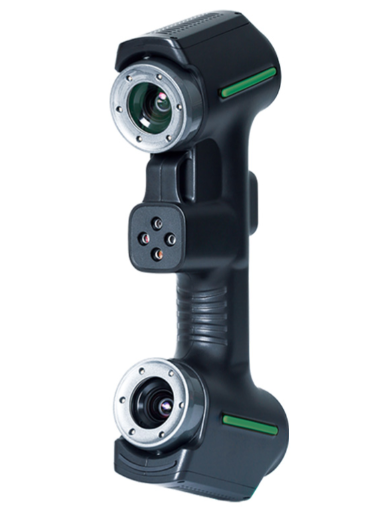

HANDHELD 3D SCANNERS
BDT 0/-
Product Details
Brand: INSIZE
Model: LSM-L340
Country Of Origin: China
Features:
Three scanning modes to suit different situations
AI algorithm module, greatly improve the scanning effect
Highly efficient scanning with ultra-fast measuring speeds
Metrology-grade measuring accuracy
| Scanning Modes: | 26 cross lines, 7 parallel lines, 1 line |
| Maximum Scanning Speed: | 5,400,000 measurements/s |
| Volume Accuracy: | 0.015mm + 0.035mm/m |
| Maximum Resolution: | 0.01mm |
| Depth of Field: | 550mm |
| Maximum Scanning Field: | 650mmÃ550mm |
| Output Format: | stl, ply, obj, txt |
| Interface: | USB 3.0 |
| Operating Temperature: | -10°C to 40°C |
| Dimensions: | 335Ã140Ã70mm |
The INSIZE LSM-L340 Handheld 3D Scanner is a professional-grade, portable metrology tool designed for high-speed, accurate 3D scanning and reverse engineering. Featuring an AI algorithm module, it dramatically improves scanning efficiency and point cloud quality.
The scanner offers three versatile scanning modes to adapt to any workpiece: High-speed scanning (26 cross blue laser lines), Precision scanning (7 parallel blue laser lines), and Deep hole scanning (1 blue laser line). It boasts an ultra-fast scanning speed of up to 5,400,000 measurements per second and a maximum resolution of 0.01mm, delivering metrology-grade accuracy (0.015mm+0.035mm/m).
Equipped with eye-safe CLASS II lasers and a large scanning field (650mm×550mm), the LSM-L340 is built for ease of use. It connects via USB 3.0 and outputs standard 3D formats (stl, ply, obj, txt). The standard delivery includes the main unit, scanning software, a calibration plate, and a generous supply of reference marks (Ø3mm and Ø6mm). Optional 3D measuring software is available for advanced dimensional analysis and tolerance evaluation.
INSIZE LSM-L340 Handheld 3D Scanner – Blue Laser Metrology-Grade Scanner
Experience the future of dimensional inspection and reverse engineering with the INSIZE LSM-L340 Handheld 3D Scanner. Designed for engineers, quality control inspectors, and designers, this portable 3D scanner combines ultra-fast blue laser technology with an AI algorithm module to deliver highly accurate, high-resolution point clouds in record time.
Key Features & Benefits:
-
Versatile 3-Button Scanning Modes: Effortlessly switch between High-Speed (26 cross blue laser lines), Precision (7 parallel lines), and Deep Hole (1 line) scanning to tackle any geometry.
-
Metrology-Grade Accuracy: Achieve volume accuracy of 0.015mm+0.035mm/m and a maximum resolution of 0.01mm, making it ideal for rigorous quality control and inspection.
-
Ultra-Fast Performance: Captures up to 5,400,000 measurements per second, drastically reducing scanning time for large or complex parts.
-
AI-Powered Processing: The built-in AI algorithm module optimizes point cloud generation, improving the scanning effect and reducing noise.
-
Safe and Reliable: Utilizes eye-safe CLASS II blue lasers, ensuring safety during operation.
-
Complete Scanning Solution: Standard delivery includes the main unit, powerful scanning software (featuring image-guide calibration, point cloud meshing, and invalid area removal), a calibration plate, and thousands of reference marks.
-
Advanced Analysis Options: Expand your capabilities with optional 3D measurement software for point cloud alignment, high-precision positioning, dimensional tolerance, and deviation analysis.
