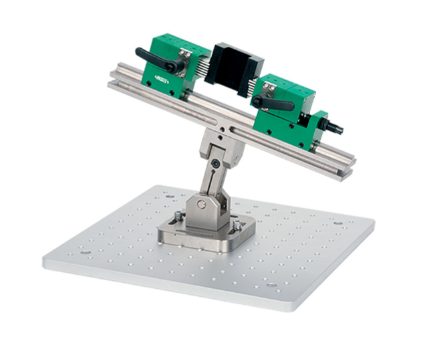

Jigs For CMM (Anvil Ø2.5mm)
BDT 423,091/-
Product Details
Brand: INSIZE
Model: ISY-200
Country Of Origin: China
Features:
Complete 3-piece modular system for versatile setups
Two-way adjustable stand with ±90° rotation on both axes
Wide clamping range of 0-170mm
Sturdy 300x300mm base plate with standard M8 threaded holes
Precision anvil (Ø2.5mm) with a 12mm stroke
Fully customizable to suit specific workpiece requirements
| Anvil Diameter: | Ø2.5mm |
| Jig Clamping Range (ISY-200-A): | 0~170mm |
| Anvil Area (ISY-200-A): | 20.5×23.3mm |
| Anvil Stroke (ISY-200-A): | 12mm |
| Base Plate Size (ISY-200-3): | 300×300×12mm (M8 Holes) |
| Stand Size (ISY-200-5): | 110×110×134.5mm |
| Rotation Range: | ±90° (Horizontal), ±90° (Vertical) |
The INSIZE ISY-200 CMM Jig Set is a highly versatile, customizable 3-piece fixture system designed to securely hold workpieces during precise Coordinate Measuring Machine (CMM) inspection. The complete set includes the ISY-200-A clamping jigs, a 300x300mm M8 base plate (ISY-200-3), and a two-way adjustable stand (ISY-200-5).
The system features an anvil diameter of Ø2.5mm and offers exceptional flexibility with a clamping range of 0-170mm. The articulated stand allows for a ±90° rotation on both horizontal and vertical axes, making it easy to position the workpiece at the exact angle required for complex measurements. With an anvil area of 20.5x23.3mm and a 12mm stroke, this jig set ensures stable, repeatable, and accurate CMM results for a wide variety of parts.
INSIZE ISY-200 CMM Jig Set – Articulated Fixture System for Precision Inspection
Achieve stable and precise workpiece positioning with the INSIZE ISY-200 CMM Jig Set. Designed for metrology labs and quality control departments, this comprehensive 3-piece fixture system provides the ultimate flexibility for holding complex parts during Coordinate Measuring Machine (CMM) inspection.
Key Features & Benefits:
-
Complete Turnkey Setup: The ISY-200 kit includes everything needed for a secure measuring environment: 1x ISY-200-A Jig Set, 1x ISY-200-3 Base Plate, and 1x ISY-200-5 Two-Way Adjustable Stand.
-
Unmatched Articulation: The two-way adjustable stand allows for a ±90° rotation range on both the vertical and horizontal axes, enabling you to tilt and rotate the workpiece to access any feature.
-
Precise Clamping: The jigs feature a clamping range from 0 to 170mm to accommodate a wide variety of part sizes. The anvil has a diameter of Ø2.5mm, an area of 20.5x23.3mm, and a stroke of 12mm.
-
Sturdy Base Plate: The 300x300x12mm base plate is equipped with M8 threaded holes, ensuring compatibility with standard CMM clamping kits and providing a rock-solid foundation.
-
Customizable Design: Marked as "Can be customized," the system can be tailored to meet specific workpiece geometries or industry requirements.
