Measuring Arms
BDT 0/-
Product Details
Brand: INSIZE
Model: CMMCM30
Country Of Origin: China
Features:
In accordance with ISO 10360-12
Internal balance
Dual high performance batteries
Equivalent-arm design
High-Speed WiFi performance
Aerospace grade carbon-fiber material
Automatic power off
U-shaped anti-collision design base
| Type: | 6-Axis Portable Measuring Arm |
| Measuring Range: | 3000mm |
| Accuracy (SPAT): | 0.034mm |
| Accuracy (EUNI): | 0.042mm |
| Material: | Aerospace-grade carbon fiber |
| Output: | USB, Wi-Fi |
| Battery Life: | 5h (1 battery) / 10h (2 batteries) |
| Weight: | 8.8kg to 10.6kg |
| Operating Temp: | 5°C to 45°C |

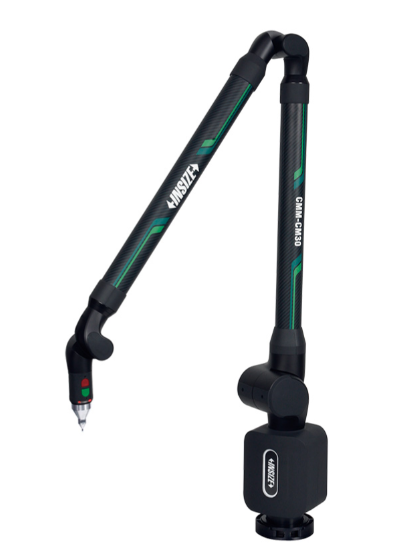

The INSIZE CMM-CM30 Measuring Arm is a professional-grade, 6-axis portable coordinate measuring machine designed for high-precision dimensional inspection directly on the shop floor. Built with aerospace-grade carbon-fiber material, it offers exceptional thermal stability and a lightweight, ergonomic design. The arm features an internal balance system and an equivalent-arm design, ensuring smooth and effortless articulation for the operator.
Designed in accordance with ISO 10360-12 standards, the CMM-CM30 boasts a 3000mm measuring range and delivers high-precision results, with a Single-point articulation test (SPAT) error of just 0.034mm. It is equipped with dual high-performance batteries, providing up to 10 hours of continuous operation, and features high-speed Wi-Fi and USB outputs for seamless data transfer. The U-shaped anti-collision base protects the joint mechanisms in harsh environments. The system comes complete with 3mm and 6mm zircon ball probes, a calibration cone, batteries, and a dust cover, making it a ready-to-use solution for complex on-site metrology tasks.
INSIZE CMM-CM30 Measuring Arm – 6-Axis Portable CMM with Carbon Fiber Construction
Take high-precision metrology out of the lab and onto the factory floor with the INSIZE CMM-CM30 Measuring Arm. This 6-axis portable coordinate measuring machine is engineered for accuracy, versatility, and ease of use, making it the ideal solution for inspecting large parts, reverse engineering, and on-machine verification.
Key Features & Benefits:
-
Aerospace-Grade Construction: Built with aerospace-grade carbon-fiber material, the arm is incredibly lightweight yet rigid, offering excellent thermal stability and reducing operator fatigue.
-
Effortless Articulation: Features an internal balance system and an equivalent-arm design, allowing for smooth, frictionless movement across the entire 3000mm measuring range.
-
Certified High Precision: Manufactured in accordance with ISO 10360-12, it delivers exceptional accuracy with a SPAT (Single-point articulation test) error of just 0.034mm.
-
Wireless Freedom: Equipped with dual high-performance lithium batteries providing up to 10 hours of continuous operation, alongside high-speed Wi-Fi and USB connectivity for untethered data transfer.
-
Rugged Design: The U-shaped anti-collision design base protects the joints and internal mechanisms from accidental impacts in demanding shop-floor environments.
-
Complete Measurement Kit: Standard delivery includes the main unit, 3mm and 6mm zircon ball probes, a calibration cone, two lithium batteries, USB cable, power adapter, and a dust cover.
-
Expandable System: A vast array of optional accessories is available, including an adjustable tripod, magnetic/vacuum bases, DMIS software, and specialized probe extensions.
