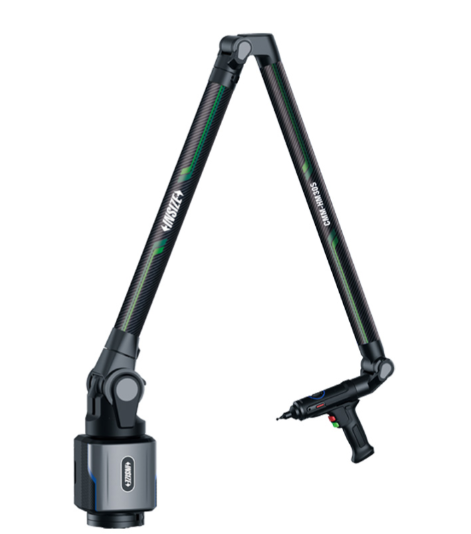

Measuring Arms (Advanced)
BDT 0/-
Product Details
Brand: INSIZE
Model: CMM-HM30S
Country Of Origin: China
Features:
According to ISO 10360-12
External decoupling and internal balancing system
Dual suspension support structure
Specialized WiFi module
Aerospace grade carbon-fiber material
Smart sensing probe system
Equivalent-arm design
Optional 8-axis rotary worktable
| Type: | 7-Axis Advanced Measuring Arm |
| Measuring Range: | 3000mm |
| Accuracy (SPAT): | 0.042mm |
| Accuracy (EUNI): | 0.053mm |
| Material: | Aerospace-grade carbon fiber |
| Output: | USB, Wi-Fi |
| Battery Life: | 16h (1 battery) / 32h (2 batteries) |
| Net Weight: | 8.8kg to 10.6kg |
| Operating Temp: | 5°C to 45°C |
The INSIZE CMM-HM30S Measuring Arm (Advanced) is a premium, 7-axis portable coordinate measuring machine engineered for high-accuracy metrology, complex 3D scanning, and rigorous shop-floor inspection. Constructed from aerospace-grade carbon-fiber and featuring an external decoupling and internal balancing system, this arm provides unmatched stability, thermal resistance, and effortless maneuverability.
Designed according to ISO 10360-12 standards, the CMM-HM30S offers a 3000mm measuring range with a Single-point articulation test (SPAT) error of just 0.042mm. It features a smart sensing probe system and a specialized Wi-Fi module for seamless, high-speed data transmission. Powered by dual batteries, it delivers an exceptional 32 hours of continuous operation. The system is highly modular, with an optional 8-axis rotary worktable and laser line probes available for advanced non-contact scanning and reverse engineering tasks.
INSIZE CMM-HM30S Measuring Arm – 7-Axis Advanced Portable CMM with Carbon Fiber Construction
Achieve laboratory-grade accuracy directly on the shop floor with the INSIZE CMM-HM30S Measuring Arm. This advanced 7-axis portable coordinate measuring machine is designed for professionals requiring high-precision measurement, non-contact laser scanning, and large-volume inspection capabilities.
Key Features & Benefits:
-
Advanced 7-Axis Design: Provides exceptional reach and flexibility, allowing for accurate measurement of complex geometries, deep features, and hidden surfaces.
-
Aerospace-Grade Carbon Fiber: Ensures lightweight operation and remarkable thermal stability, minimizing measurement errors caused by environmental temperature fluctuations.
-
Smooth Articulation: Features an external decoupling and internal balancing system, along with a dual suspension support structure, making the arm effortless to move and highly stable during probing.
-
Certified High Precision: Manufactured according to ISO 10360-12 standards, offering a 3000mm range and a SPAT (Single-point articulation test) accuracy of 0.042mm.
-
Extended Battery Life: Equipped with dual high-performance batteries, providing up to 32 hours of continuous untethered operation.
-
Seamless Connectivity: Features a specialized Wi-Fi module and USB output for real-time, high-speed data transfer to your metrology software.
-
Expandable Scanning System: Fully compatible with an optional 8-axis rotary worktable and advanced laser line probes (Standard or High Accuracy), transforming the arm into a powerful 3D scanning and reverse engineering tool.
