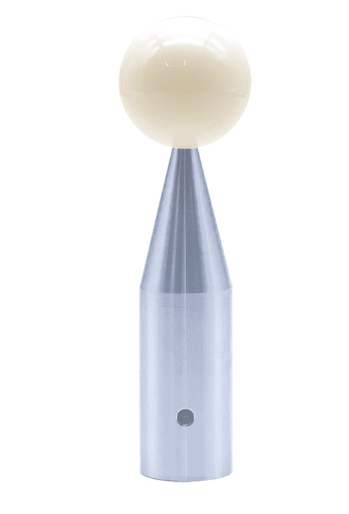

Standard Balls For CMM
BDT 182,127/-
Product Details
Brand: INSIZE
Model: ISQ-16-025CE-M8
Country Of Origin: China
Features:
Diameter accuracy of ceramic ball: +1.25µm/-1µm, roundness: 0.13µm
Mirror surface
Stainless steel measuring rod
Supplied with manufacturer inspection certificate
| Ball Diameter: | 25mm (Ø25) |
| Thread Size (T): | M8 |
| Diameter Accuracy: | +1.25µm / -1µm |
| Roundness: | 0.13µm |
| Material: | Ceramic (Ball), Stainless Steel (Rod) |
| Surface: | Mirror finish |
| Overall Length: | 100mm |
| Base Diameter: | Ø18mm |
| Included: | Measuring rod, Inspection certificate |
The INSIZE ISQ-16-025CE-M8 Standard Ball for CMM is a premium calibration artifact designed for verifying the accuracy and performance of Coordinate Measuring Machines. Featuring a 25mm diameter ceramic ball with a mirror surface finish, it guarantees exceptional precision with a diameter accuracy of +1.25µm/-1µm and an outstanding roundness of just 0.13µm. The ball is mounted on a rigid stainless steel measuring rod with a standard M8 thread (T).
This standard ball is typically used in conjunction with the optional ISQ-16-BASE-M8 Magnetic Base, which provides a strong 80kgf magnetic force to securely anchor the calibration setup on a CMM table. Each standard ball is supplied with a manufacturer inspection certificate, ensuring traceability and reliability for metrology professionals.
INSIZE ISQ-16-025CE-M8 Standard Ball for CMM – Ceramic Calibration Sphere
Ensure your Coordinate Measuring Machine is performing at its absolute best with the INSIZE ISQ-16-025CE-M8 Standard Ball. Designed for metrology professionals, this premium calibration artifact provides the traceability and precision required to verify CMM accuracy, repeatability, and probe qualification.
Key Features & Benefits:
-
Ultra-High Precision Ceramic Ball: The 25mm diameter ceramic sphere is manufactured to exacting standards, featuring a diameter accuracy of +1.25µm/-1µm and a roundness of just 0.13µm.
-
Mirror Surface Finish: The highly polished mirror surface ensures smooth, frictionless contact with CMM probe tips, minimizing wear and maximizing measurement consistency.
-
Durable Stainless Steel Rod: The ball is mounted on a robust stainless steel rod, providing excellent rigidity and thermal stability.
-
Standard M8 Thread: Equipped with a standard M8 thread, making it compatible with a wide variety of CMM fixture setups and the INSIZE magnetic base.
-
Optional Magnetic Base: Pair it with the ISQ-16-BASE-M8 magnetic base (80kgf force) for a highly stable, quick-setup calibration platform.
-
Certified Quality: Supplied with a manufacturer inspection certificate to guarantee its dimensional accuracy.
