Styli For CMM
BDT 0/-
Product Details
Brand: INSIZE
Model: ISQ-20-071
Country Of Origin: China
Features:
Roundness: 0.25µm
ISQ-20-071 (Diagram of stylus)
Unit: mm
(Dimensional drawing showing Ød, Ød1, L, L1)
| Thread: | M2 |
| Tip Diameter (Ød): | 1mm |
| Stem Diameter (Ød1): | 0.8mm |
| Overall Length (L): | 20mm |
| Effective Working Length (L1): | 12.5mm |
| Rod Material: | Carbide |
| Tip Material: | Ruby |
| Roundness: | 0.25µm |

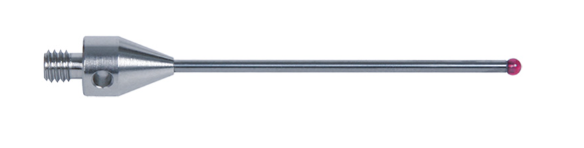

The INSIZE ISQ-20-071 M2 CMM Stylus is a high-precision metrology accessory designed for accurate probing on Coordinate Measuring Machines (CMM) and other precision measuring systems. Featuring an M2 thread, this stylus is equipped with a 1mm diameter spherical ruby tip mounted on an 0.8mm diameter carbide stem. With an overall length (L) of 20mm and an effective working length (L1) of 12.5mm, it provides excellent reach for inspecting deeper features, holes, and contours. Manufactured with a strict roundness tolerance of 0.25µm, it ensures reliable, repeatable, and highly accurate measurement data. The combination of a wear-resistant ruby tip and a rigid, lightweight carbide stem makes it an ideal choice for rigorous quality control applications.
INSIZE ISQ-20-071 M2 CMM Stylus – High-Precision Ruby Tip & Carbide Stem
Ensure the accuracy of your coordinate measuring machine with the INSIZE ISQ-20-071 CMM Stylus. Designed for metrology professionals, this M2 thread stylus is engineered to deliver precise, repeatable probing results across a wide variety of inspection tasks.
Key Features & Benefits:
-
Ruby Ball Tip: The 1mm ruby sphere is extremely hard and wear-resistant, ensuring a long lifespan and maintaining calibration over thousands of contact measurements.
-
Carbide Stem: The 0.8mm stem is made from high-quality carbide, providing exceptional rigidity and thermal stability while remaining lightweight to minimize bending and dynamic errors during scanning.
-
Extended Reach: With an overall length of 20mm and an effective working length (L1) of 12.5mm, this stylus is perfectly suited for accessing deeper holes, grooves, and intricate part geometries.
-
Ultra-High Precision: Manufactured to a strict roundness tolerance of 0.25µm, guaranteeing accurate and consistent data collection.
-
Standard Compatibility: Features a standard M2 thread, making it compatible with a wide range of CMM probe heads, extensions, and articulations.
