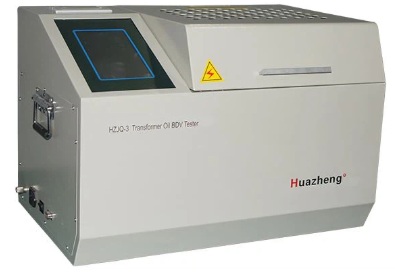

Three Cups Transformer Oil Breakdown Voltage Tester
BDT 0/-
Product Details
Brand: Huazheng
3 Cups Oil Breakdown Voltage Tester:
With a microprocessor, three cups of a body, automatically fulfill the withstand voltage test for oil circulation with a range of 0～80KV (including boosting, maintaining, mixing, standing, calculation, printing and other operations) 2. Display by large-screen LCD and prompt by English...
HZJQ-3 3 Cups Transformer Oil Breakdown Voltage Tester Overview
Three Cups Transformer Oil BDV Breakdown Voltage Tester enables simultaneous testing of three oil samples, significantly improving testing efficiency. With the HZJQ-3 model, users can conveniently perform breakdown voltage tests on various types of insulating oil. The built-in micro printer allows for immediate on-site printing of test results, while the RS232 communication port enables seamless data upload to a PC for further analysis and record-keeping.
To ensure optimal performance and extend the service life of the instrument, please read this manual carefully before use and strictly follow the instructions for operation and maintenance.
| Voltage Tester FEATURE |
HZJQ-3 3 Cups Transformer Oil Breakdown Voltage Tester FEATURE The instrument offers simple operation. Operators only need to perform a basic setup, and the instrument will automatically conduct dielectric strength tests on 1 to 3 oil samples in sequence. For each oil sample, the breakdown voltage values and the number of test cycles are automatically stored. Upon completion of the test, the built-in thermal printer can output a report containing all breakdown voltage values and their corresponding averages. |
| Output voltage | 0～80 kV (optional) |
| Voltage distortion rate | ＜ 3% |
| Voltage raising speed | 0.5～5 kV/s (adjustable) |
| Standing time | 15 min adjustable |
| Boosting interval | 5 min adjustable |
| Boosting times | 0～10 times |
| Booster capacity | 1.5 kVA |
| Measuring accuracy | ± 3% |
| Supply voltage | AC 220 V ±10%, 50 Hz ±1 Hz |
| Power | 200 W |
| Applicable temperature | 0 ℃～45 ℃ |
| Applicable humidity | ＜ 75% RH |
| Overall dimension | 585 × 390 × 410 mm |
| Cups Transformer Oil Breakdown Voltage Tester PACKING LIST |
Main engine: 01 Oil Cup: 03 |
| Elbow | 06 Nos |
| Agitator | 05 Nos |
| Standard Gauge | 01 Nos |
| Tweezers | 01 Nos |
| Mains Cable | 01 Nos |
| Fuse | 02 Nos |
| Printing Paper | 02 Nos |
| Operating Instructions | 01 Nos |
| Factory Inspection Report | 01 Nos |
Brand: Huazheng
3 Cups Oil Breakdown Voltage Tester:
With a microprocessor, three cups of a body, automatically fulfill the withstand voltage test for oil circulation with a range of 0～80KV (including boosting, maintaining, mixing, standing, calculation, printing and other operations) 2. Display by large-screen LCD and prompt by English...
HZJQ-3 3 Cups Transformer Oil Breakdown Voltage Tester Overview
Three Cups Transformer Oil BDV Breakdown Voltage Tester enables simultaneous testing of three oil samples, significantly improving testing efficiency. With the HZJQ-3 model, users can conveniently perform breakdown voltage tests on various types of insulating oil. The built-in micro printer allows for immediate on-site printing of test results, while the RS232 communication port enables seamless data upload to a PC for further analysis and record-keeping.
To ensure optimal performance and extend the service life of the instrument, please read this manual carefully before use and strictly follow the instructions for operation and maintenance.
Huazheng HZJQ-3 Three Cups Transformer Oil Breakdown Voltage Tester – 80kV
The Huazheng HZJQ-3 Three Cups Transformer Oil Breakdown Voltage Tester is an automatic testing instrument designed to measure the dielectric breakdown voltage (BDV) of transformer insulating oil.
Equipped with a microprocessor-controlled testing system and three independent oil testing cups, the HZJQ-3 enables efficient transformer oil insulation testing for laboratories, power utilities, substations, and industrial maintenance facilities.
The instrument supports automated testing operations, including voltage boosting, maintaining, mixing, standing, calculation, and result printing.
Key Features:
- Three-cup transformer oil BDV testing system.
- Test voltage range: 0–80kV.
- Microprocessor-controlled automatic operation.
- Large LCD display with English-language prompts.
- Automatic voltage boosting and breakdown voltage measurement.
- Automatic oil mixing and standing functions.
- Automatic calculation and result printing.
- Suitable for transformer insulating oil quality assessment.
- Designed for laboratory and industrial electrical testing.
Applications:
- Transformer oil dielectric strength testing.
- Transformer insulating oil breakdown voltage measurement.
- Electrical substations and power distribution facilities.
- Transformer manufacturing and maintenance.
- Electrical testing and calibration laboratories.
- Power plants and industrial maintenance departments.
- Engineering universities and polytechnic laboratories.
