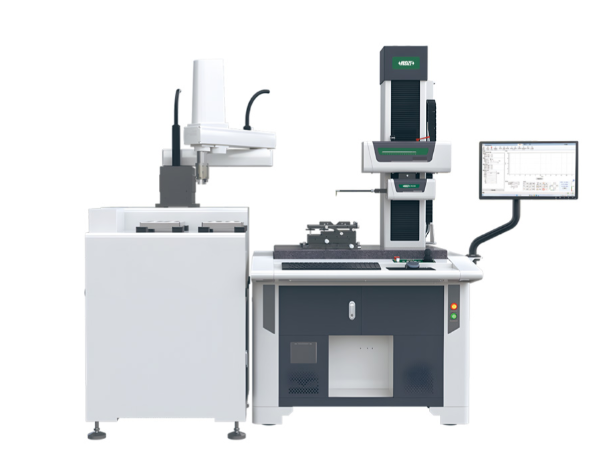

Automatic Profile Measurement System
BDT 0/-
Product Details
Brand: INSIZE
Model: RBT-SPM01
Country Of Origin: China
Features:
Lightweight SCARA robot, achieving high precision, high speed and high flexibility
Measuring equipment and automated equipment share the same controller, featuring strong anti-interference capability and stable system performance
Automated measurement supports drag-and-drop teaching
Motion planning can be completed by measurement software and is easy to operate
| Robot Type: | SCARA (3-Axis) |
| Robot Repeatability: | Âą0.02mm (X/Y), Âą0.01mm (Z) |
| Profile X-Axis Range: | 150mm |
| Profile Z-Axis Range: | Âą20mm |
| Profile Resolution: | 0.1Âĩm (X), 0.02Âĩm (Z) |
| Power Supply: | 220Âą10%V, 50Hz |
| Output Power: | 500W |
The INSIZE RBT-SPM01 Automatic Profile Measurement System is a state-of-the-art, fully automated metrology cell that combines a lightweight SCARA robot with a high-precision surface profile measuring machine. Designed as a customizable turnkey solution, it is specifically engineered to automate the inspection of complex workpieces, drastically increasing throughput and eliminating human error.
The system is defined by its seamless integration: both the robotic arm and the measuring equipment share the same controller, resulting in strong anti-interference capabilities and highly stable system performance. Operators can easily set up measurement routines using the intuitive drag-and-drop teaching function, with motion planning managed directly through the measurement software. The integrated surface profile machine features a 150mm X-axis range, a ±20mm Z-axis range, and exceptional linear accuracy of ±(0.6+|0.02H|)µm. The package includes a computer, printer, all necessary probes (roughness and profile), calibration blocks, a precision vise, and comprehensive measurement software that supports CAD profile comparison and automatic reporting.
INSIZE RBT-SPM01 Automatic Profile Measurement System – Robotic Metrology Automation
Revolutionize your quality control process with the INSIZE RBT-SPM01 Automatic Profile Measurement System. This advanced, fully automated robotic cell is designed to handle high-volume inspection of complex parts, combining a lightweight SCARA robot with a high-precision surface profile measuring machine. By integrating automated part handling with precise metrology, it significantly reduces inspection cycle times and ensures repeatable, error-free results.
Key Features & Benefits:
-
Seamless Robotic Integration: The lightweight SCARA robot and the surface profile machine share a single, unified controller. This eliminates complex communication interfaces, providing strong anti-interference capability and exceptionally stable system performance.
-
Effortless Programming: The system features a highly intuitive drag-and-drop teaching function. Motion planning for the robot can be completed directly within the measurement software, making setup quick and easy for operators.
-
High-Precision Metrology: The integrated profile machine offers a 150mm X-axis range and a ±20mm Z-axis range, with an X-axis resolution of 0.1µm and a linear accuracy of ±(0.6+|0.02H|)µm.
-
Comprehensive Software Suite: The included software supports full profile measurement, automatic measurement routines, and CAD profile comparison for rigorous quality inspection.
-
High-Speed SCARA Robot: Features a 500×500×200mm work envelope, repeat positioning accuracy of ±0.02mm (X/Y) and ±0.01mm (Z), and a maximum working speed of 8.6 m/sec.
-
Customizable Turnkey Solution: Configured specifically to match your workpiece requirements. The standard delivery includes the robotic system, the profile measuring main unit, computer, printer, calibration blocks, roughness and profile probes, a precision vise, and all installation tools.
