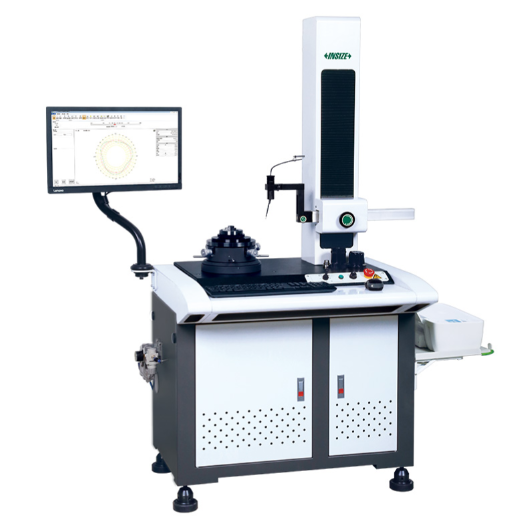

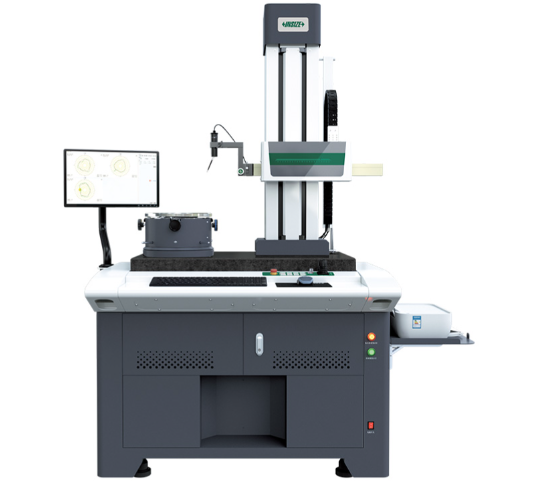

ROUNDNESS MEASURING MACHINE
BDT 0/-
Product Details
Brand: INSIZE
Model: RCT-RA260
Country Of Origin: China
Features:
Air-floating spindle
Can measure roundness, concentricity, flatness, radial runout
Spectrum analysis, automatic gap/burr removal, waveform analysis
4 roundness evaluation methods: smallest area method, least square method, smallest circumscribed circle method, largest inscribed circle method
Measuring filter: 1-15upr, 1-50upr, 1-150upr, 1-250upr, 1-500upr, 15-100upr, 15-500upr, 2-15upr
Filter form: Gauss (ISO standard)
Software is included, for measurement, analysis, data output, etc.
| Probe Measuring Range: | ±300µm |
| Probe Resolution: | 0.001µm |
| Max. Measuring Diameter: | 260mm |
| Max. Workpiece Diameter: | 400mm |
| Rotary Stage Rotation Speed: | 6rpm |
| Z-Axis Travel: | 420mm (Motorized) |
| X-Axis Travel: | 165mm (Manual) |
| Dimensions (L×W×H): | 1300×795×1715mm |
| Weight: | 320kg |
| Power Supply: | 220±10%V, 50Hz (500W) |
The INSIZE RCT-RA260 Roundness Measuring Machine is a precision metrology instrument designed for the accurate evaluation of circular geometric features. Built with an air-floating spindle, it ensures exceptionally smooth rotation and eliminates friction, providing highly accurate measurements of roundness, concentricity, flatness, and radial runout.
The machine features a motorized Z-axis (420mm travel) and a manual X-axis (165mm travel), allowing for precise positioning of the probe. Its powerful, included software provides comprehensive analysis capabilities, including spectrum analysis, automatic gap/burr removal, and waveform analysis. Users can choose from four distinct roundness evaluation methods (smallest area, least square, smallest circumscribed circle, largest inscribed circle) and utilize various Gaussian filters to ISO standards.
Resting on a solid granite stage (700x500mm) with an adjustable 3D stage (30kg capacity) and a precision chuck, the RCT-RA260 is robust and versatile. It comes as a complete turnkey solution, including a computer, printer, standard block, air filter, and all necessary installation tools, making it ideal for manufacturing floors and metrology labs inspecting shafts, bearings, and precision components.
INSIZE RCT-RA260 Roundness Measuring Machine – Precision Form Metrology System
Achieve laboratory-grade accuracy in your circular form measurements with the INSIZE RCT-RA260 Roundness Measuring Machine. Designed for quality control engineers and metrology professionals, this advanced system is engineered to precisely measure roundness, concentricity, flatness, and radial runout on a wide variety of precision-machined components, such as shafts, bearings, and gears.
Key Features & Benefits:
-
Air-Floating Spindle Technology: Provides an ultra-smooth, frictionless rotation that guarantees exceptional accuracy and repeatability in radial measurements.
-
Advanced Analytical Software: The included, intuitive software offers comprehensive measurement and analysis capabilities, including spectrum analysis, automatic gap/burr removal, and detailed waveform analysis.
-
Versatile Evaluation Methods: Equipped with four distinct roundness evaluation algorithms (minimum zone/smallest area, least squares, minimum circumscribed, and maximum inscribed circle) to meet any inspection standard.
-
Precision Positioning: Features a motorized Z-axis with a 420mm travel range for automated vertical profiling, paired with a smooth, manual X-axis for precise tactile adjustment.
-
Robust & Stable Design: Built on a heavy granite stage (700×500mm) to isolate vibrations, and includes an adjustable 3D stage with a 30kg weight capacity and a high-precision chuck (external grip Ø1-81mm).
-
Complete Turnkey Package: Standard delivery includes the main unit, computer, printer, software, precision chuck, standard block for calibration, air filter, and all necessary installation tools.
