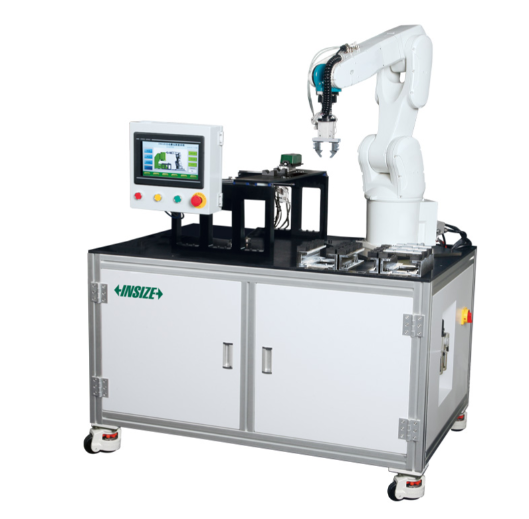

Automatic Roughness Measuring System
BDT 0/-
Product Details
Brand: INSIZE
Model: RBT-ISR01
Country Of Origin: China
Features:
6-axis industrial robot for high speed and precision, IP67, triple protection
The roughness tester is compact and lightweight, making it easy to install in tight spaces
Data is uploaded to the MES in real time, and reports are generated automatically
Dedicated communication interface, high speed and high efficiency
| Robot: | 6-axis, 727mm reach, 4000mm/s speed, Âą0.02mm accuracy |
| Roughness Tester: | ISR-C400 |
| Range: | 320Îŧm (+160Îŧm~-160Îŧm) |
| Resolution (Ra): | 0.001Îŧm |
| Accuracy: | Âą10% |
| Communication: | Ethernet Modbus Tcp |
| Max Workpiece Weight: | 8kg |
The INSIZE RBT-ISR01 Automatic Roughness Measuring System is a robotic inspection solution designed to automate surface roughness measurement in industrial production. It uses a 6-axis industrial robot with ±0.02 mm repeatability to transfer workpieces to the ISR-C400 roughness tester for precise inspection. With 0.001 μm resolution, ±10% accuracy, Ethernet Modbus TCP communication, and MES integration, it supports automatic data reporting and OK/NG part sorting. The system includes a touchscreen control panel, customized fixtures, and a standard diamond probe, with optional probes for measuring tiny holes and deep grooves.
The INSIZE RBT-ISR01 Automatic Roughness Measuring System is a fully automated robotic inspection solution designed for high-volume manufacturing and surface quality control. It features a 6-axis industrial robot with IP67 protection, a 727 mm reach, ±0.02 mm repeatability, and an 8 kg payload capacity. The integrated ISR-C400 Roughness Tester provides 0.001 μm resolution and ±10% accuracy for measuring surface roughness parameters such as Ra, Rz, and Rk. With Ethernet Modbus TCP communication and MES integration, the system enables real-time data transfer, automatic report generation, and OK/NG part sorting. The complete system includes customized fixtures, a control system, touchscreen, software, and a standard diamond probe, with optional probes for tiny holes and deep grooves.
