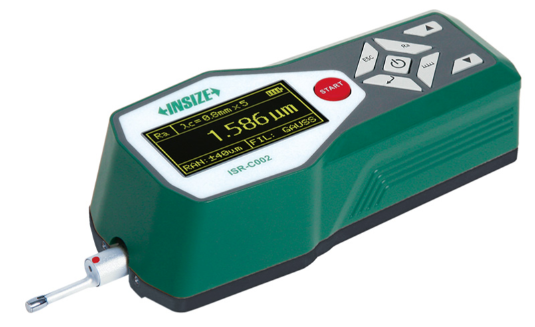

Roughness Tester
BDT 188,025/-
Product Details
Brand: INSIZE
Model: ISR-C002
Country Of Origin: China
Features:
Roughness tester can be operated by mobile phones (only Android system) or computers
Data can be sent to Excel by connecting to computers via bluetooth or SPC cable
Support bluetooth printer
21 roughness parameters
Display roughness value, profile and curve
Memory of maximum 100 results
Automatic power off
| Roughness Range: | 320μm (+160μm~-160μm) |
| Resolution (Ra): | 0.001μm |
| Accuracy: | ±10% |
| Standard Probe: | Diamond, 5μm/90° |
| Output: | Bluetooth and USB |
| Dimensions: | 141×55×40mm |
| Weight: | 400g |
The INSIZE ISR-C002 Roughness Tester is an ultra-compact, portable surface metrology instrument designed for on-the-go measurement and modern data connectivity. Weighing only 400g and featuring a built-in rechargeable battery, it easily fits in your hand for measuring hard-to-reach surfaces. Its standout feature is wireless operation: users can control the device and view real-time roughness profiles, curves, and values directly on their Android smartphones or PCs via Bluetooth. Data can also be instantly exported to Excel using a Bluetooth or SPC cable connection.
The device evaluates 21 roughness parameters (including Ra, Rz, Rq, and Rk) with a high resolution of 0.001μm, using a durable diamond stylus (5μm/90°). It comes complete with an adjustable stand, a calibration block, and a probe cover. A wide array of optional probes (tiny hole, deep groove, extension rods) is available to measure complex geometries, making it a versatile tool for manufacturing, aerospace, and automotive inspections.
INSIZE ISR-C002 Roughness Tester – Bluetooth-Enabled Portable Surface Metrology
Experience the future of on-site surface inspection with the INSIZE ISR-C002 Roughness Tester. Designed for ultimate portability and modern connectivity, this compact, battery-powered instrument allows you to measure surface roughness and seamlessly transfer data to your smart devices or computers.
Key Features & Benefits:
-
Smart Connectivity: Operates wirelessly via Bluetooth. Connect to your Android smartphone or PC to display roughness values, profiles, and curves remotely. Export data directly to Excel or print using an optional Bluetooth printer.
-
High-Precision Measurement: Features a diamond stylus (5μm/90°) and an inductive probe with a measuring force of 4mN. It delivers a resolution of 0.001μm across a 320μm range.
-
Comprehensive Analysis: Evaluates 21 essential roughness parameters (Ra, Rz, Rq, Rv, Rp, Rk, etc.) to meet diverse industrial standards.
-
Ultra-Portable Design: Weighing just 400g with a built-in rechargeable battery, it is perfect for taking measurements directly on the factory floor or in the field.
-
Versatile Probe Options: Includes a standard probe, with optional accessories available for tiny holes (diameter>Ø2), deep grooves (depth≤15), and extension rods for difficult-to-reach areas.
-
Complete Turnkey Kit: Comes standard with an adjustable stand, calibration block, probe cover, PC software, and an AC/DC adapter.
