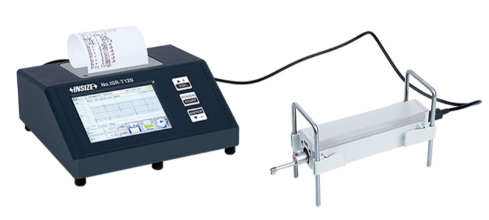

Roughness Tester
BDT 379,112/-
Product Details
Brand: INSIZE
Model: ISR-T120
Country Of Origin: China
Features:
Roughness tester can be operated by mobile phones or computers
Data can be sent to Excel by connecting to computers via bluetooth or SPC cable
Built-in printer can print measurement results and graphics
36 roughness parameters
Meet ISO, DIN, ANSI, JIS standards
Display roughness values, profile and curve
Memory of maximum 100 data and waveform
Built-in lithium battery, working time more than 50 hours
Automatic power off
| Range: | X-axis: 17.5mm, Z-axis: 800μm (-400μm~400μm) |
| Resolution (Ra): | 0.001μm |
| Accuracy: | ±10% |
| Standard Probe: | Diamond, 5μm/90° |
| Output: | Bluetooth and USB |
| Dimensions: | 155×145×58mm |
| Weight: | 1000g |
The INSIZE ISR-T120 Roughness Tester is a professional-grade, benchtop-style portable metrology instrument designed for comprehensive surface finish analysis. Its standout feature is a built-in thermal printer that allows users to print measurement results and graphics on the spot, making it ideal for rigorous quality control and documentation.
Equipped with a bright color touch screen, the ISR-T120 displays roughness values, profiles, and Abbott-Firestone curves (Rmr analysis) in real-time. It evaluates 36 roughness parameters compliant with ISO, DIN, ANSI, and JIS standards, delivering a high resolution of 0.001μm and an accuracy of ±10% across a Z-axis range of 800μm. The device features a built-in rechargeable lithium battery providing over 50 hours of continuous operation. For maximum flexibility, the tester can be operated wirelessly via Bluetooth from Android mobile phones or connected to computers via USB or SPC cable, allowing data to be directly exported to Excel. It comes complete with a standard diamond probe (5μm/90°), an adjustable stand, a calibration block, and PC software.
INSIZE ISR-T120 Roughness Tester – Benchtop Surface Metrology with Built-in Printer
Streamline your quality control documentation with the INSIZE ISR-T120 Roughness Tester. Combining the portability of a handheld device with the functionality of a benchtop instrument, this advanced profilometer features a built-in thermal printer, allowing you to instantly print out detailed measurement results, profiles, and curves right at the point of inspection.
Key Features & Benefits:
-
Instant Documentation: The integrated printer ensures you have a physical record of your roughness measurements and graphical profiles immediately.
-
Intuitive Touch Screen: A large, vivid color touch screen displays a wealth of data, including measurement results, roughness profiles, and Rmr analysis, with easy navigation.
-
Wireless Connectivity: Operate the tester remotely and transfer data to PCs or Android phones via Bluetooth. Alternatively, use the USB or SPC cable for direct connection and seamless Excel data export.
-
Comprehensive Analysis: Measures 36 roughness parameters (including Ra, Rz, Rq, Rk, Mr1, Mr2, and more) in compliance with ISO, DIN, ANSI, and JIS standards.
-
High Accuracy & Range: Features an inductive probe with a diamond stylus (5μm/90°), a Z-axis range of 800μm (-400μm~400μm), and a resolution of 0.001μm.
-
Extended Battery Life: The built-in rechargeable lithium battery provides over 50 hours of continuous use, ensuring it's ready for long shifts.
-
Versatile Mounting Options: Includes a magnetic stand adapter and an adjustable stand (40mm height adjustment) for stable measurements on various surfaces. A wide array of optional probes (tiny hole, deep groove, extensions) is available for complex geometries.
