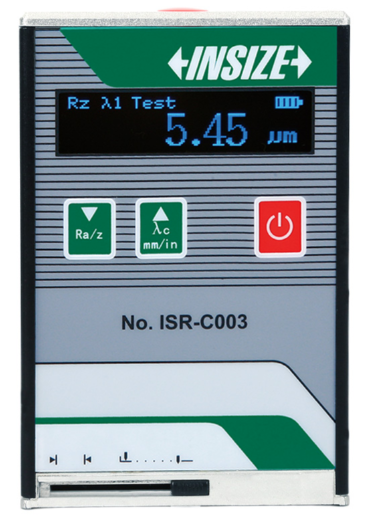

Roughness Tester (Economic Type)
BDT 129,347/-
Product Details
Brand: INSIZE
Model: ISR-C003
Country Of Origin: China
Features:
Unit: µm, µin
Automatic power off
Economic and cost-effective design
Ultra-compact and lightweight (200g)
Built-in rechargeable battery for portable use
Measures 4 key parameters (Ra, Rz, Rq, Rt)
Durable diamond stylus (piezoelectric probe)
Includes calibration block
Optional fixture available for small shafts (Ø3-20mm)
| Type: | Economic Roughness Tester |
| Parameters: | Ra, Rz, Rq, Rt |
| Range: | Ra/Rq: 0.05~15µm; Rz/Rt: 0.1~50µm |
| Resolution (Ra): | 0.01µm |
| Probe Type: | Piezoelectric |
| Dimensions: | 70×24×106mm |
| Weight: | 200g |
| Power: | Built-in rechargeable battery |
The INSIZE ISR-C003 Roughness Tester (Economic Type) is a compact, lightweight, and highly portable metrology instrument designed for quick and reliable surface finish checks. Weighing only 200g and featuring a built-in rechargeable battery, it is perfect for on-the-go measurements.
The device utilizes a durable piezoelectric probe with a diamond stylus (10µm/90°) to measure four essential roughness parameters: Ra, Rz, Rq, and Rt. It offers a resolution of 0.01µm and an accuracy of ±10%. Please note: This specific model is designed for smooth surfaces and is not suitable for rough turning, milling, or planing workpieces. The tester comes standard with a calibration block and AC/DC adapter. For added versatility, an optional fixture is available to securely hold small cylindrical shafts (Ø3~20mm) during measurement.
INSIZE ISR-C003 Economic Roughness Tester – Compact & Portable Surface Meter
Get fast, accurate surface finish readings with the INSIZE ISR-C003 Roughness Tester. Designed as an economical yet highly capable entry-level profilometer, this ultra-compact device is ideal for quality control on smooth surfaces, machine shops, and field inspections.
Key Features & Benefits:
-
Essential Measurement Parameters: Accurately measures Ra, Rz, Rq, and Rt to evaluate surface finish quality.
-
High Resolution: Delivers a resolution of 0.01µm and an accuracy of ±10%, ensuring reliable data collection.
-
Durable Piezoelectric Probe: Equipped with a diamond stylus (10µm/90°) built for longevity and consistent performance.
-
Ultra-Portable Design: Weighing just 200g and measuring a mere 70×24×106mm, it easily fits in a pocket and features a built-in rechargeable battery for untethered operation.
-
Important Usage Note: This economic model is specifically calibrated for standard, smooth machined surfaces. It is not suitable for heavy-texture surfaces such as rough turning, milling, or planing.
-
Complete Kit: Standard delivery includes the main unit, a calibration block for periodic verification, and an AC/DC adapter.
-
Shaft Measurement Ready: Pair with the optional ISR-C003-FIXTURE to securely clamp and measure small cylindrical shafts ranging from Ø3mm to Ø20mm.
