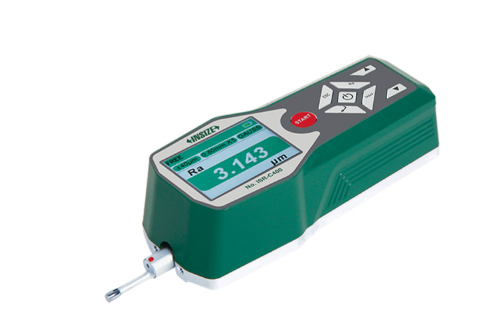

Roughness Tester For Automation
BDT 320,756/-
Product Details
Brand: INSIZE
Model: ISR-C400
Country Of Origin: China
Features:
Communicate with PLC for automatic operation
Display 1, 3 or 4 groups of measurement parameters
Threshold alarm function
Selectable measurement standards ISO-4287, ISO-4288, ANSI B46.1, DIN-4768, JIS-B0601, ISO-21290, ISO-13565, GB/T+13268
Automatic range change during measurement
Display roughness value, profile and curve
Support bluetooth printer, freely select the measurement parameters and curves
Memory of maximum 100 results
Data can be sent to Excel by connecting to computers via bluetooth or SPC cable
| Roughness Range: | 320μm (+160μm~-160μm) |
| Resolution (Ra): | 0.001μm |
| Accuracy: | ±10% |
| Standard Probe: | Diamond, 5μm/90° |
| Output: | Bluetooth, USB, RS232 |
| Dimensions: | 141×55×40mm |
| Weight: | 400g |
| Power: | Built-in rechargeable battery |
The INSIZE ISR-C400 Roughness Tester is a specialized, high-performance portable metrology instrument designed specifically for automated industrial environments. Its standout feature is the ability to communicate directly with a PLC (Programmable Logic Controller) for seamless automatic operation, making it ideal for integration into robotic cells or automated inspection lines.
The device features a large, intuitive screen that can display 1, 3, or 4 groups of measurement parameters simultaneously, along with the roughness profile and curve. It includes a highly useful threshold alarm function, allowing operators to set upper and lower limits for immediate pass/fail indication. The ISR-C400 is incredibly versatile, offering selectable compliance with numerous international standards (ISO, ANSI, DIN, JIS, GB/T) and automatic range change during measurement. It supports wireless data transfer via Bluetooth (to PCs, Android phones, or printers) and wired connections via USB and RS232, allowing easy export to Excel. Housed in a compact, 400g body with a built-in rechargeable battery, it comes complete with an adjustable stand, calibration block, and a standard diamond probe.
INSIZE ISR-C400 Roughness Tester – Automated PLC-Integrated Surface Metrology
Maximize your production efficiency with the INSIZE ISR-C400 Roughness Tester for Automation. Designed for Industry 4.0 integration, this advanced handheld profilometer features direct PLC communication capabilities, allowing it to trigger and execute measurements automatically within automated production lines.
Key Features & Benefits:
-
Automation Ready: The ISR-C400 can communicate directly with PLCs for fully automated operation, making it a perfect fit for robotic and inline inspection systems.
-
Flexible Display & Alarms: Features a high-contrast screen that can be configured to show 1, 3, or 4 parameter groups simultaneously. It includes a robust threshold alarm function for instant visual GO/NO-GO feedback.
-
Multi-Standard Compliance: Evaluates a comprehensive list of parameters (Ra, Rz, Rq, Rk, Rpk, Rvk, etc.) and allows users to select their preferred measurement standard, including ISO-4287, ANSI B46.1, DIN-4768, and JIS-B0601.
-
Seamless Data Transfer: Supports Bluetooth wireless connectivity to PCs, Android devices, and printers, alongside traditional USB and RS232 outputs. Data can be exported directly to Excel.
-
High-Precision Measurement: Utilizes a durable diamond stylus (5μm/90°) with a measuring force of 4mN to deliver a resolution of 0.001μm and an accuracy of ±10% over a 320μm range.
-
Complete Turnkey Kit: Standard delivery includes the main unit, standard probe, calibration block, adjustable stand, probe cover, software, and AC/DC adapter.
